- Page 1 Ceiling Microphone Array Dante™ Quick-Start Guide...
-
Page 2: Table Of Contents
Table of Contents PRODUCT OVERVIEW ..............1 PARTS .................... 1 TOOLS REQUIRED ................ 1 INSTALLATION ................2 MICROPHONE ARRAY PLACEMENT ........... 2 COMPLIANCE ................5 CE....................5 PLENUM ..................5... -
Page 3: Product Overview

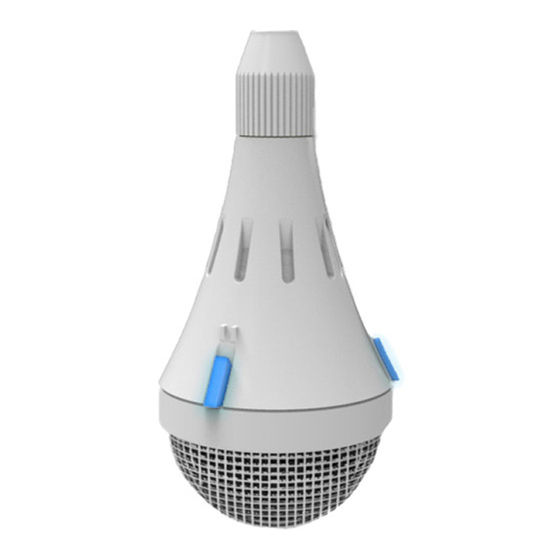

QUICK-START GUIDE PRODUCT OVERVIEW The Ceiling Microphone Array (CMA) Dante™ is the newest addition to our ceiling mic lineup and most advanced tri-element, ceiling microphone array with built-in Dante audio networking interface for conferencing and sound reinforcement applications. Flexible and easy to use, the CMA is 100% RF immune, optimized for speech-intelligibility, and can daisy-chain for easy installation. -
Page 4: Installation
CEILING MIC ARRAY DANTE MICROPHONE ARRAY PLACEMENT Determine placement of an array by its pickup pattern and room characteristics. Adjusting drop-down height from 0 to 7 ft. determines how close an array is to users, and how far its pickup pattern extends. INSTALLATION 1. - Page 5 QUICK-START GUIDE 4. The holes in the mounts may also be used to attach a Ø3mm (Ø1/8”) safety cable. You must supply your own safety cable. 5. Run the 30 ft. CAT6 cable (included) from Junction Box to Junction Box, and Junction Box to Interface Box. 6.
- Page 6 CEILING MIC ARRAY DANTE 11. Connect the CMA cable to the Junction Box. 12. Run the CAT5e/6 cable from the Interface Box location to the Network Switch. You must supply your own CAT5e/6 cable. 13. Put the tile(s) back into place. 14.
-
Page 7: Compliance
Salt Lake City, UT 84116 TechSupport Tel: 801.975.7200 International Tel: 801.974.3760 Sales: 800.707.6994 Tel: +1.801.975.7200 e-mail: tech.support@clearone. e-mail: global@clearone.com © 2018 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice. QSG-0062-001 Rev 1.0 MAY 2018...
