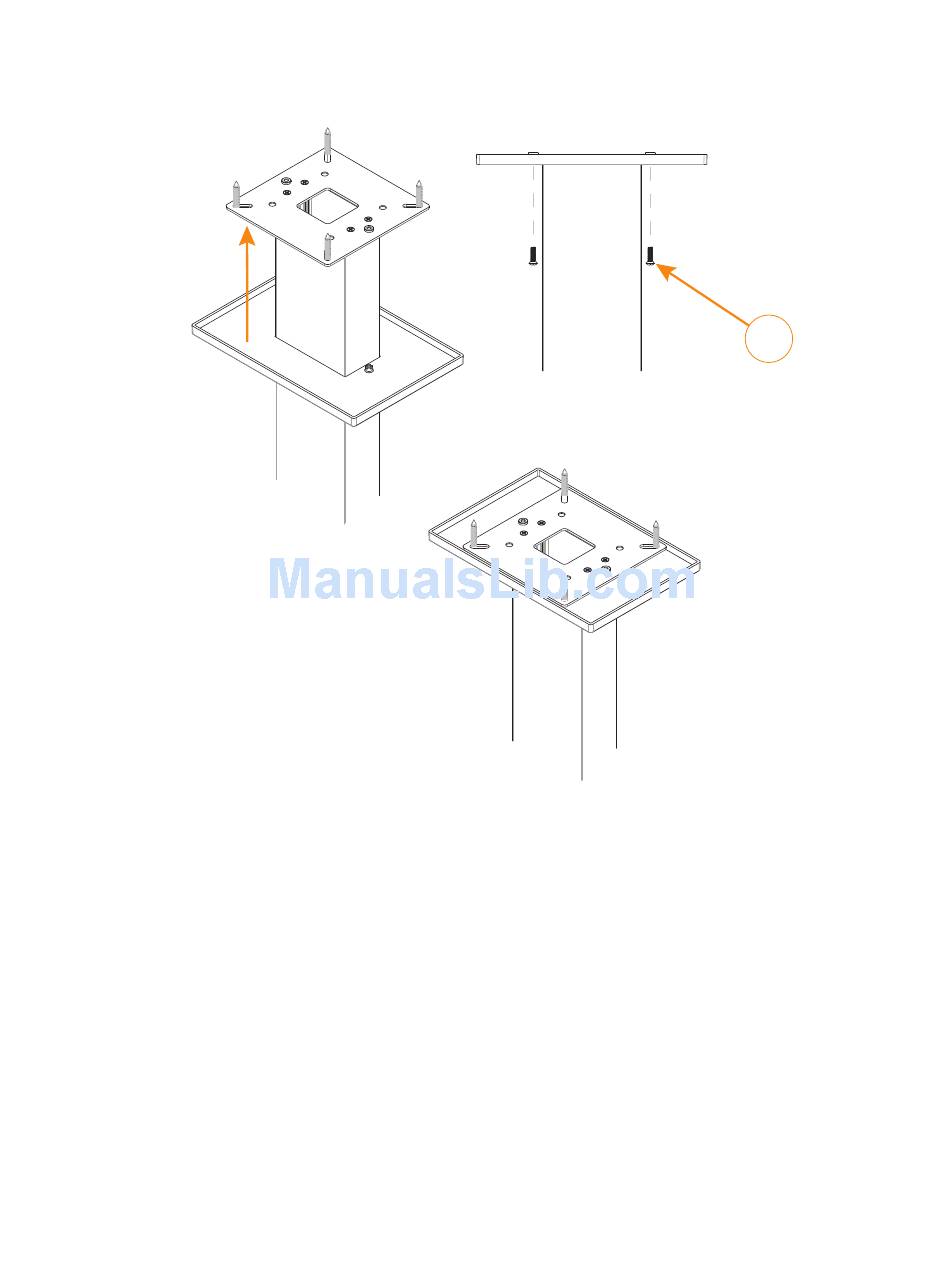

After the Suspension Column and Ceiling/Wall Plate are attached to the ceiling or junction box and
the Link IN, Link OUT and PoE cables are fed down through the Suspension Column, slide the Trim
Plate up the column and secure it to the Wall/Ceiling plate.
SlideTrim Plate
up on the
Suspension
Column
Prepare the Beamforming Microphone Array for attachment to the Suspension Column by partially
inserting the screws. There are three slotted keyholes big enough for screw heads to pass through
and one hole that is not slotted. Partially insert screws into the Beamforming Microphone Array
corresponding to the slotted keyholes in the Mic Mounting Plate.
10
Beamforming Microphone Array
Fasten the
Trim Plate
to the
Ceiling/Wall
Plate
HA 2X
