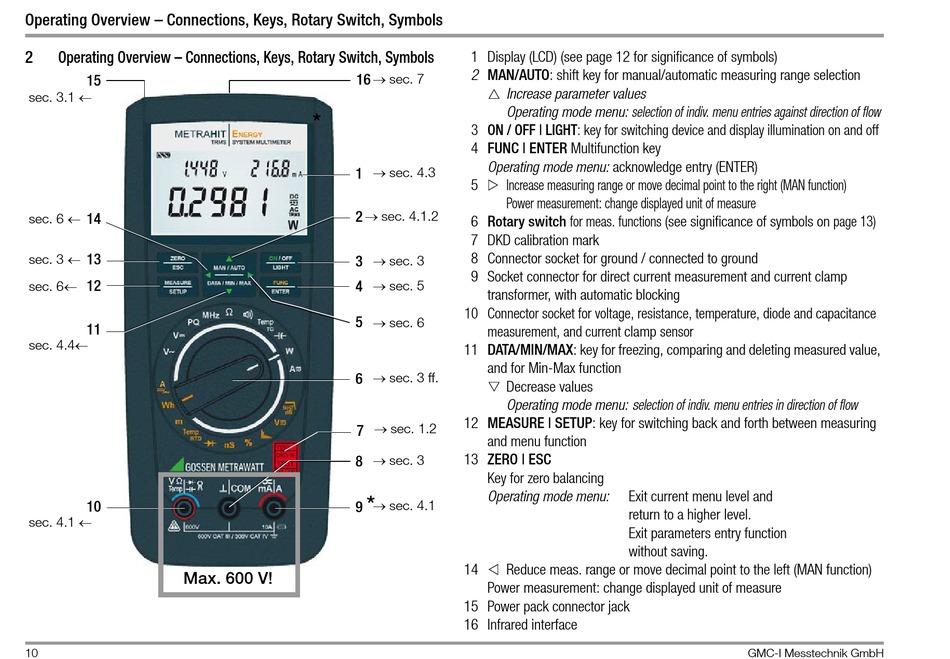

Operating Overview – Connections, Keys, Rotary Switch, Symbols
2 Operating Overview – Connections, Keys, Rotary Switch, Symbols
15
sec. 3.1 
sec. 6 
14
sec. 3 
13
12
sec. 6
11
sec. 4.4
10
sec. 4.1 
Max. 600 V!
10
1 Display (LCD) (see page 12 for significance of symbols)
2 MAN/AUTO: shift key for manual/automatic measuring range selection
sec. 7
16

*
3 ON / OFF | LIGHT: key for switching device and display illumination on and off
4 FUNC | ENTER Multifunction key
Operating mode menu: acknowledge entry (ENTER)
sec. 4.3
1

5
sec. 4.1.2
2
6 Rotary switch for meas. functions (see significance of symbols on page 13)
7 DKD calibration mark
sec. 3 8 Connector socket for ground / connected to ground
3
9 Socket connector for direct current measurement and current clamp
sec. 5
4
transformer, with automatic blocking
10 Connector socket for voltage, resistance, temperature, diode and capacitance
sec. 6
5
measurement, and current clamp sensor
11 DATA/MIN/MAX: key for freezing, comparing and deleting measured value,
and for Min-Max function
sec. 3 ff.
6

12 MEASURE | SETUP: key for switching back and forth between measuring
sec. 1.2
7
and menu function
sec. 3
13 ZERO | ESC
8
Key for zero balancing
Operating mode menu:
*
sec. 4.1
9

14
Power measurement: change displayed unit of measure
15 Power pack connector jack
16 Infrared interface
Increase parameter values
Operating mode menu: selection of indiv. menu entries against direction of flow
Increase measuring range or move decimal point to the right (MAN function)
Power measurement: change displayed unit of measure
Decrease values
Operating mode menu: selection of indiv. menu entries in direction of flow
Exit current menu level and
return to a higher level.
Exit parameters entry function
without saving.
Reduce meas. range or move decimal point to the left (MAN function)
GMC-I Messtechnik GmbH
