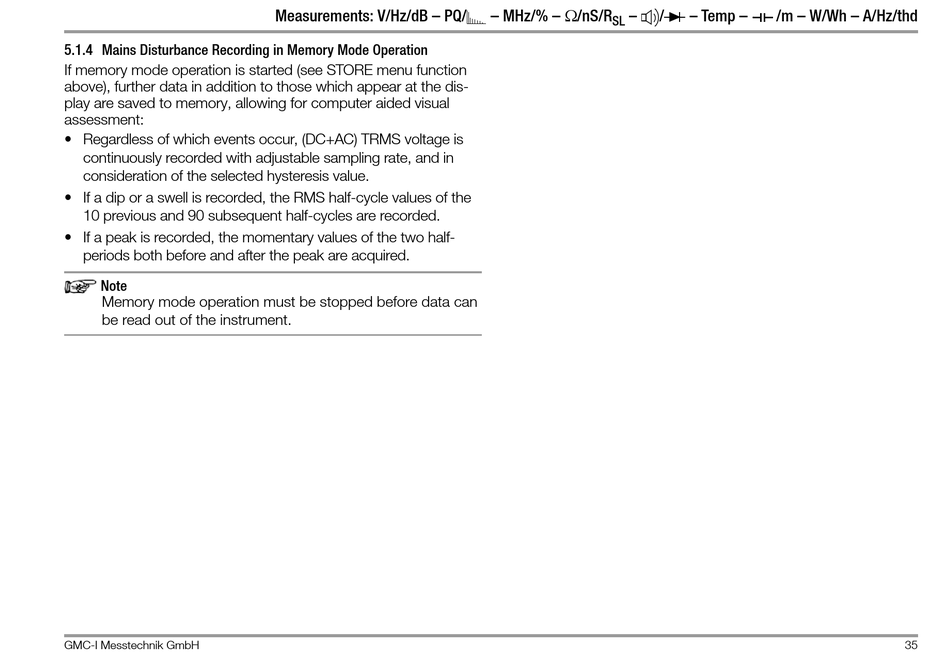

5.1.4 Mains Disturbance Recording in Memory Mode Operation

If memory mode operation is started (see STORE menu function
above), further data in addition to those which appear at the dis-
play are saved to memory, allowing for computer aided visual
assessment:
• Regardless of which events occur, (DC+AC) TRMS voltage is
continuously recorded with adjustable sampling rate, and in
consideration of the selected hysteresis value.
• If a dip or a swell is recorded, the RMS half-cycle values of the
10 previous and 90 subsequent half-cycles are recorded.
• If a peak is recorded, the momentary values of the two half-
periods both before and after the peak are acquired.
Note
Memory mode operation must be stopped before data can
be read out of the instrument.
