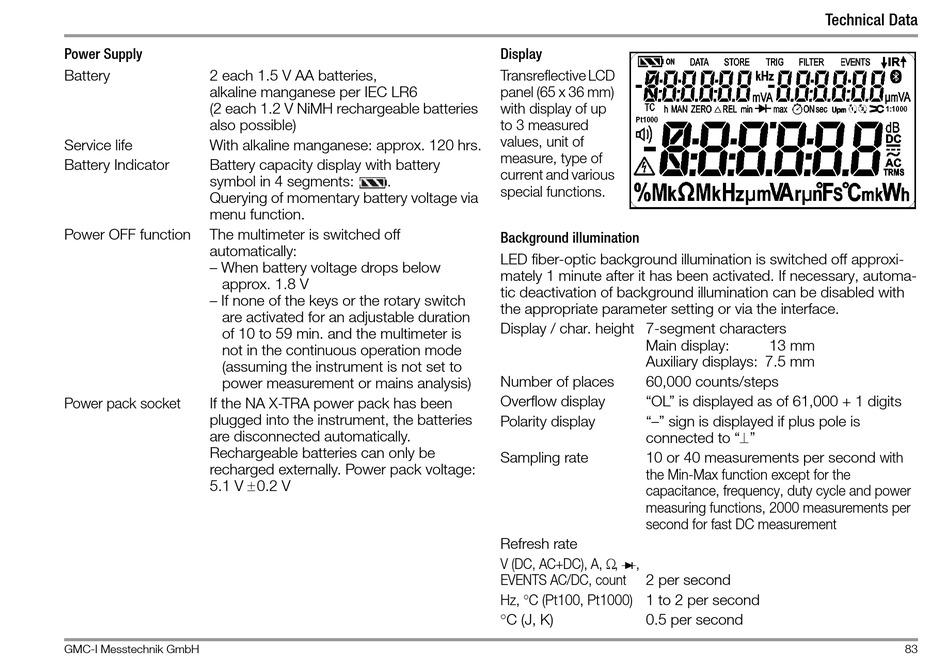

Gossen MetraWatt METRAHIT ENERGY TRMS System Multimeter Operating Instructions Manual page 83

Power Supply
Battery 2 each 1.5 V AA batteries,
alkaline manganese per IEC LR6
(2 each 1.2 V NiMH rechargeable batteries
also possible)
Service life With alkaline manganese: approx. 120 hrs.
Battery Indicator Battery capacity display with battery
symbol in 4 segments:
Querying of momentary battery voltage via
menu function.
Power OFF function The multimeter is switched off
automatically:
– When battery voltage drops below
approx. 1.8 V
– If none of the keys or the rotary switch
are activated for an adjustable duration
of 10 to 59 min. and the multimeter is
not in the continuous operation mode
(assuming the instrument is not set to
power measurement or mains analysis)
Power pack socket If the NA X-TRA power pack has been
plugged into the instrument, the batteries
are disconnected automatically.
Rechargeable batteries can only be
recharged externally. Power pack voltage:
5.1 V 0.2 V
GMC-I Messtechnik GmbH
Display
Transreflective LCD
panel (65 x 36 mm)
with display of up
to 3 measured
values, unit of
measure, type of
current and various
.
special functions.
Background illumination
LED fiber-optic background illumination is switched off approxi-
mately 1 minute after it has been activated. If necessary, automa-
tic deactivation of background illumination can be disabled with
the appropriate parameter setting or via the interface.
Display / char. height 7-segment characters
Number of places
Overflow display
Polarity display
Sampling rate
Refresh rate
V (DC, AC+DC), A, ,
EVENTS AC/DC, count
Hz, C (Pt100, Pt1000) 1 to 2 per second
C (J, K)
Main display: 13 mm
Auxiliary displays: 7.5 mm
60,000 counts/steps
"OL" is displayed as of 61,000 + 1 digits
"–" sign is displayed if plus pole is
connected to ""
10 or 40 measurements per second with
the Min-Max function except for the
capacitance, frequency, duty cycle and power
measuring functions, 2000 measurements per
second for fast DC measurement
,
2 per second
0.5 per second
Technical Data
