Device and Measuring Parameters

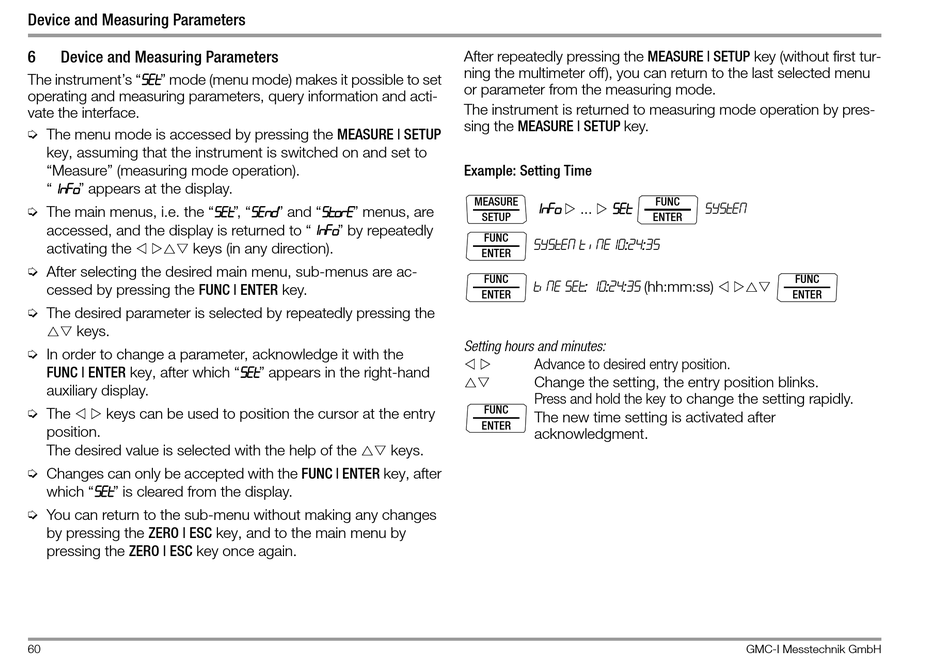

6 Device and Measuring Parameters
The instrument's "SET" mode (menu mode) makes it possible to set
operating and measuring parameters, query information and acti-
vate the interface.
Ð The menu mode is accessed by pressing the MEASURE | SETUP
key, assuming that the instrument is switched on and set to
"Measure" (measuring mode operation).
"1nFo" appears at the display.
Ð The main menus, i.e. the "SET", "SEnd" and "StorE" menus, are
accessed, and the display is returned to "1nFo" by repeatedly
 
activating the keys (in any direction).
Ð After selecting the desired main menu, sub-menus are ac-
cessed by pressing the FUNC | ENTER key.
Ð The desired parameter is selected by repeatedly pressing the

keys.
Ð In order to change a parameter, acknowledge it with the
FUNC | ENTER key, after which "SET" appears in the right-hand
auxiliary display.
Ð The
 
keys can be used to position the cursor at the entry
position.
The desired value is selected with the help of the
Ð Changes can only be accepted with the FUNC | ENTER key, after
which "SET" is cleared from the display.
Ð You can return to the sub-menu without making any changes
by pressing the ZERO | ESC key, and to the main menu by
pressing the ZERO | ESC key once again.
60
After repeatedly pressing the MEASURE | SETUP key (without first tur-
ning the multimeter off), you can return to the last selected menu
or parameter from the measuring mode.
The instrument is returned to measuring mode operation by pres-
sing the MEASURE | SETUP key.
Example: Setting Time
MEASURE
1nFo
SETUP
FUNC
System t iME10:24:35
ENTER
FUNC
tiME set: 10:24:35 (hh:mm:ss)
ENTER
Setting hours and minutes:
 
Advance to desired entry position.

Change the setting, the entry position blinks.
Press and hold the key to change the setting rapidly.
FUNC
The new time setting is activated after
ENTER
acknowledgment.

keys.
FUNC
  set System
...
ENTER
 
FUNC
ENTER
