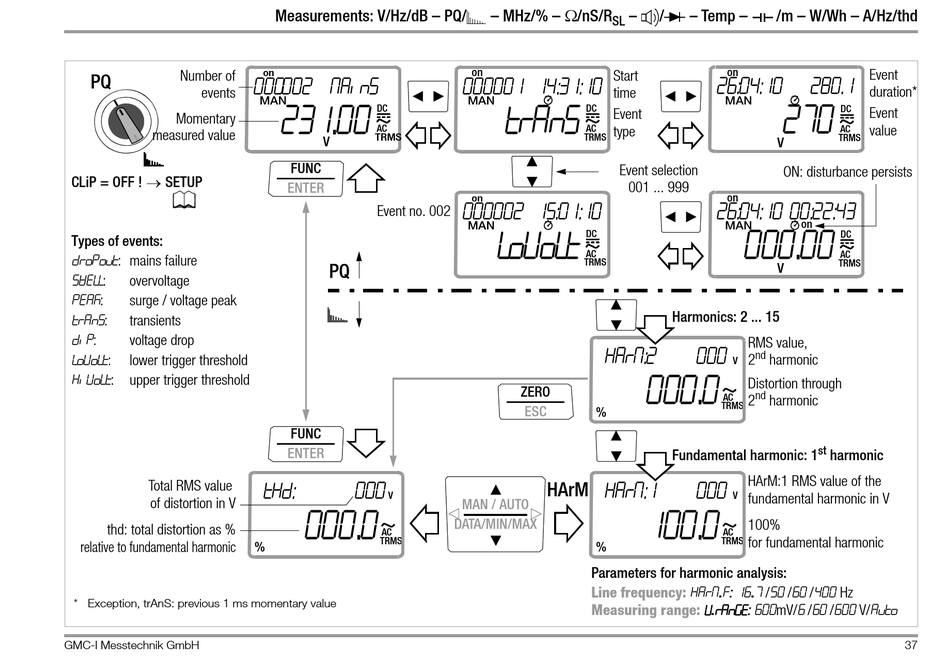

Number of
PQ
events
Momentary
measured value
CLiP = OFF !  SETUP
Types of events:
Dropout: mains failure
Swell:
overvoltage
Peak:
surge / voltage peak
Trans:
transients
dip:
voltage drop
lovolt:
lower trigger threshold
hivolt: upper trigger threshold
Total RMS value
of distortion in V
thd: total distortion as %
relative to fundamental harmonic
* Exception, trAnS: previous 1 ms momentary value
