Interface Operation

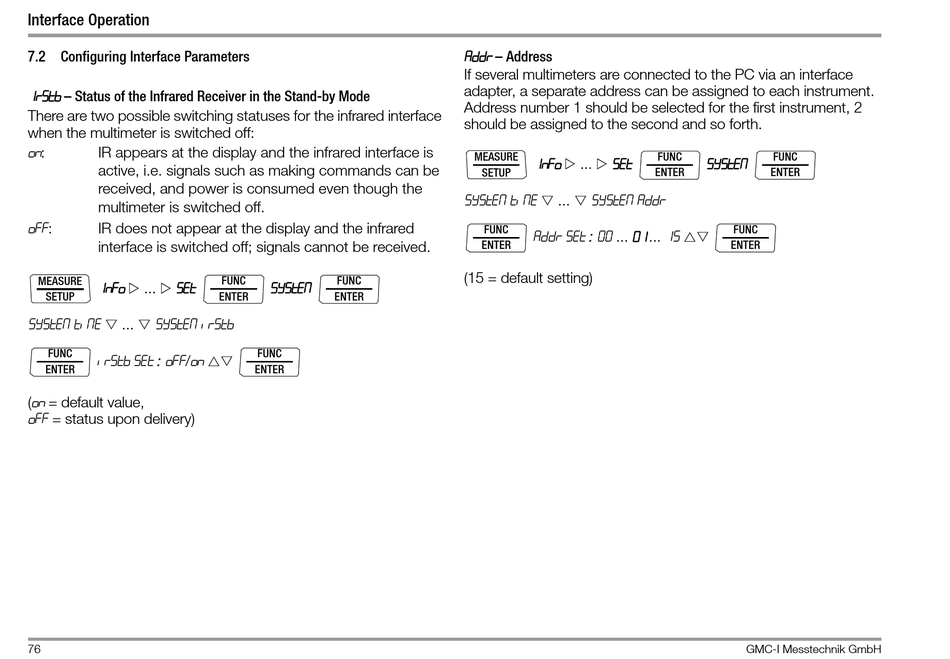

7.2 Configuring Interface Parameters

1rStb – Status of the Infrared Receiver in the Stand-by Mode
There are two possible switching statuses for the infrared interface
when the multimeter is switched off:
on:
IR appears at the display and the infrared interface is
active, i.e. signals such as making commands can be
received, and power is consumed even though the
multimeter is switched off.
oFF:
IR does not appear at the display and the infrared
interface is switched off; signals cannot be received.
MEASURE
1nFo   SET
...
SETUP
system time   system irStb
...
FUNC
irstb set : off /on
ENTER
(on = default value,
oFF = status upon delivery)
76
FUNC FUNC
system 
ENTER ENTER
FUNC

ENTER
Addr – Address
If several multimeters are connected to the PC via an interface
adapter, a separate address can be assigned to each instrument.
Address number 1 should be selected for the first instrument, 2
should be assigned to the second and so forth.
MEASURE
1nFo   SET
...
SETUP
system time   system addr
...
FUNC
addr set : 00 ... 01 ... 15
ENTER
(15 = default setting)
FUNC FUNC
system 
ENTER ENTER
FUNC

ENTER
