Accessories

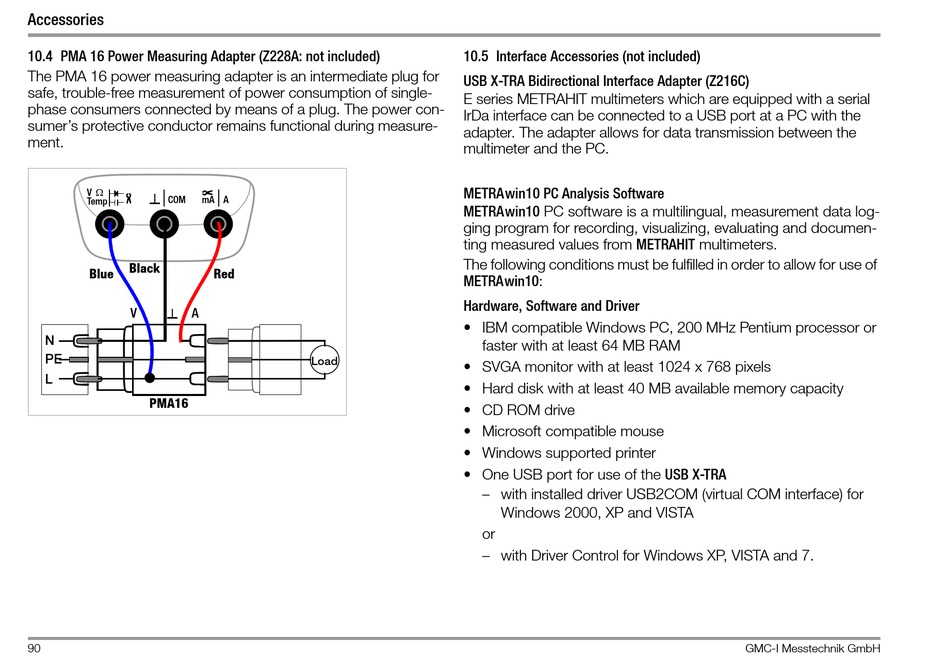

10.4 PMA 16 Power Measuring Adapter (Z228A: not included)

The PMA 16 power measuring adapter is an intermediate plug for
safe, trouble-free measurement of power consumption of single-
phase consumers connected by means of a plug. The power con-
sumer's protective conductor remains functional during measure-
ment.

V
COM mA A
Temp
Black
Blue
V A
N
PE
L
PMA16
90
Red
Load

10.5 Interface Accessories (not included)

USB X-TRA Bidirectional Interface Adapter (Z216C)
E series METRAHIT multimeters which are equipped with a serial
IrDa interface can be connected to a USB port at a PC with the
adapter. The adapter allows for data transmission between the
multimeter and the PC.
METRAwin10 PC Analysis Software
METRAwin10 PC software is a multilingual, measurement data log-
ging program for recording, visualizing, evaluating and documen-
ting measured values from METRAHIT multimeters.
The following conditions must be fulfilled in order to allow for use of
METRAwin10:
Hardware, Software and Driver
• IBM compatible Windows PC, 200 MHz Pentium processor or
faster with at least 64 MB RAM
• SVGA monitor with at least 1024 x 768 pixels
• Hard disk with at least 40 MB available memory capacity
• CD ROM drive
• Microsoft compatible mouse
• Windows supported printer
• One USB port for use of the USB X-TRA
– with installed driver USB2COM (virtual COM interface) for
Windows 2000, XP and VISTA
or
– with Driver Control for Windows XP, VISTA and 7.
