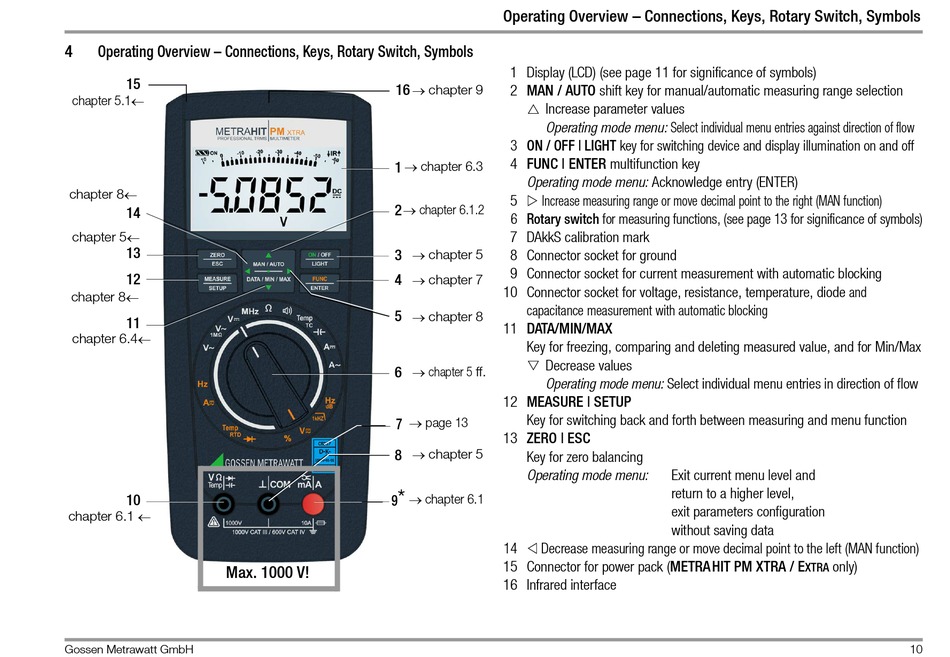

4 Operating Overview – Connections, Keys, Rotary Switch, Symbols
15
chapter 5.1
chapter 8
14
chapter 5
13
12
chapter 8
11
chapter 6.4
10
chapter 6.1 
Max. 1000 V!
Gossen Metrawatt GmbH
Operating Overview – Connections, Keys, Rotary Switch, Symbols
1 Display (LCD) (see page 11 for significance of symbols)
16
chapter 9 2 MAN / AUTO shift key for manual/automatic measuring range selection
Increase parameter values

Operating mode menu: Select individual menu entries against direction of flow
3 ON / OFF | LIGHT key for switching device and display illumination on and off
4 FUNC | ENTER multifunction key
chapter 6.3
1
Operating mode menu: Acknowledge entry (ENTER)
5 Increase measuring range or move decimal point to the right (MAN function)

2 chapter 6.1.2
6 Rotary switch for measuring functions, (see page 13 for significance of symbols)
7 DAkkS calibration mark
3 chapter 5
8 Connector socket for ground
9 Connector socket for current measurement with automatic blocking
4
chapter 7
10 Connector socket for voltage, resistance, temperature, diode and
capacitance measurement with automatic blocking
5
chapter 8
11 DATA/MIN/MAX
Key for freezing, comparing and deleting measured value, and for Min/Max
Decrease values

chapter 5 ff.
6
Operating mode menu: Select individual menu entries in direction of flow
12 MEASURE | SETUP
Key for switching back and forth between measuring and menu function
page 13
7
13 ZERO | ESC
8 chapter 5
Key for zero balancing
Operating mode menu:
*
chapter 6.1
9
14 Decrease measuring range or move decimal point to the left (MAN function)

15 Connector for power pack (METRAHIT PM XTRA / E
16 Infrared interface
Exit current menu level and
return to a higher level,
exit parameters configuration
without saving data
only)
XTRA
10
