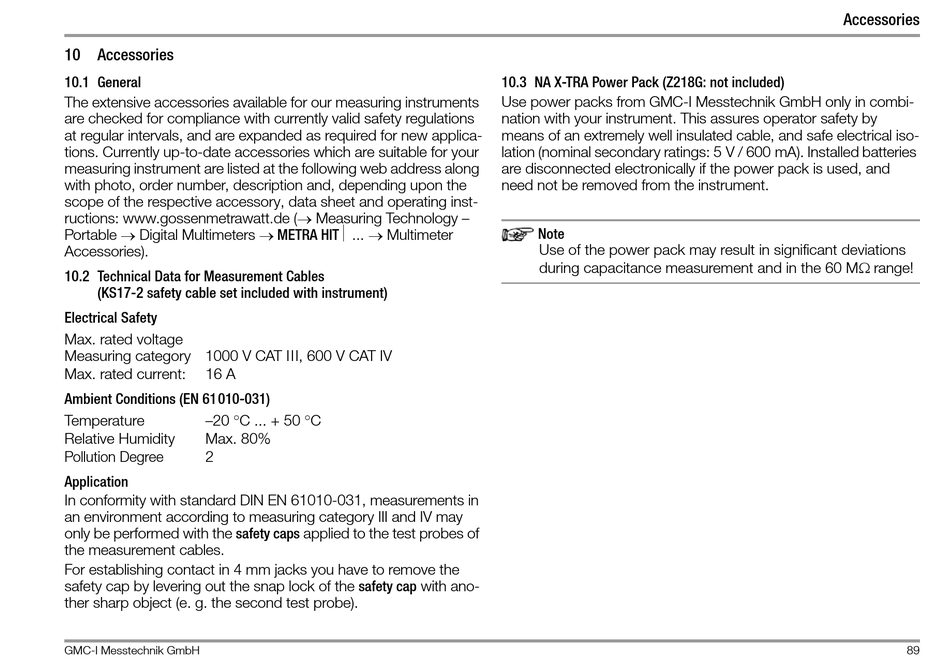

10 Accessories
10.1 General
The extensive accessories available for our measuring instruments
are checked for compliance with currently valid safety regulations
at regular intervals, and are expanded as required for new applica-
tions. Currently up-to-date accessories which are suitable for your
measuring instrument are listed at the following web address along
with photo, order number, description and, depending upon the
scope of the respective accessory, data sheet and operating inst-
ructions: www.gossenmetrawatt.de ( Measuring Technology –
Portable Digital Multimeters METRA HIT ... Multimeter
Accessories).
10.2 Technical Data for Measurement Cables
(KS17-2 safety cable set included with instrument)
Electrical Safety
Max. rated voltage
Measuring category 1000 V CAT III, 600 V CAT IV
Max. rated current:
16 A
Ambient Conditions (EN 61010-031)
–20 C ... + 50 C
Temperature
Relative Humidity
Max. 80%
Pollution Degree
2
Application
In conformity with standard DIN EN 61010-031, measurements in
an environment according to measuring category III and IV may
only be performed with the safety caps applied to the test probes of
the measurement cables.
For establishing contact in 4 mm jacks you have to remove the
safety cap by levering out the snap lock of the safety cap with ano-
ther sharp object (e. g. the second test probe).
GMC-I Messtechnik GmbH
10.3 NA X-TRA Power Pack (Z218G: not included)
Use power packs from GMC-I Messtechnik GmbH only in combi-
nation with your instrument. This assures operator safety by
means of an extremely well insulated cable, and safe electrical iso-
lation (nominal secondary ratings: 5 V / 600 mA). Installed batteries
are disconnected electronically if the power pack is used, and
need not be removed from the instrument.
Note
Use of the power pack may result in significant deviations
during capacitance measurement and in the 60 M range!
Accessories
89
