REAR WHEEL, REAR BRAKE AND DRIVE CHAIN
SR******

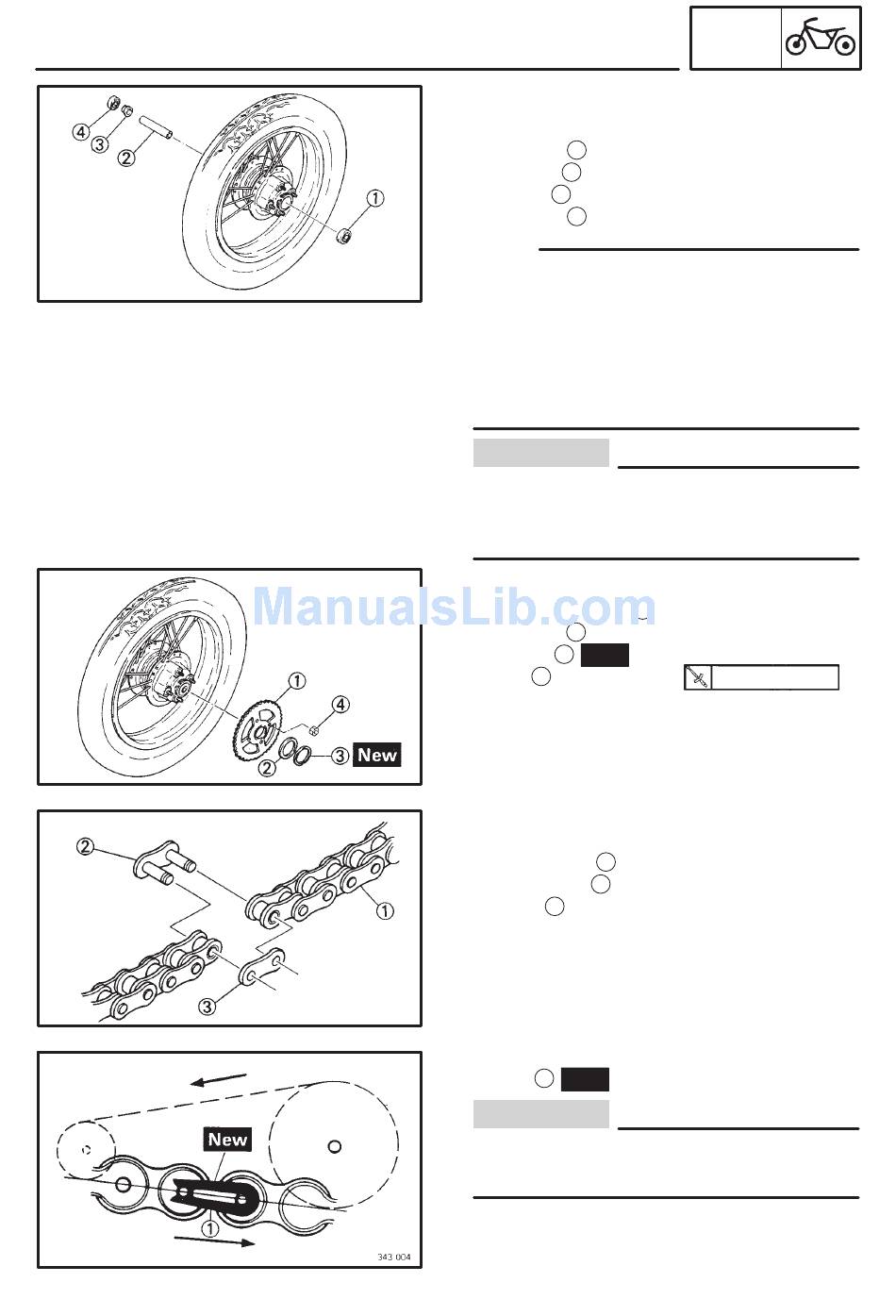

REAR WHEEL ASSEMBLY

1. Install:
: Bearing 1
: Spacer 2
: Collar 3
: Bearing 4
NOTE:
: Apply the lithium soap base grease on the
bearing and oil seal lip when installing.
: Use a socket that matches the outside diame-
ter of the race of the bearing.
: Always use a new oil seal.
: Install the oil seal with its manufacturer's
marks or numbers facing outward.
CAUTION:
Do not strike the inner race of balls of the
bearing. Contact should be made only with
the outer race.
2. Install:
: Driven sprocket 1
: Washer 2
: Circlip 3
New
: Nut 4
T*****

DRIVE CHAIN INSTALLATION

1. Install:
: Drive chain 1
: Chain joint 2
: Plate 3
2. Install:
: Clip 1
New
CAUTION:
Be sure to install the chain joint clip to the
direction as shown.
6-28
CHAS
40 Nm (4.0 m:kg)
