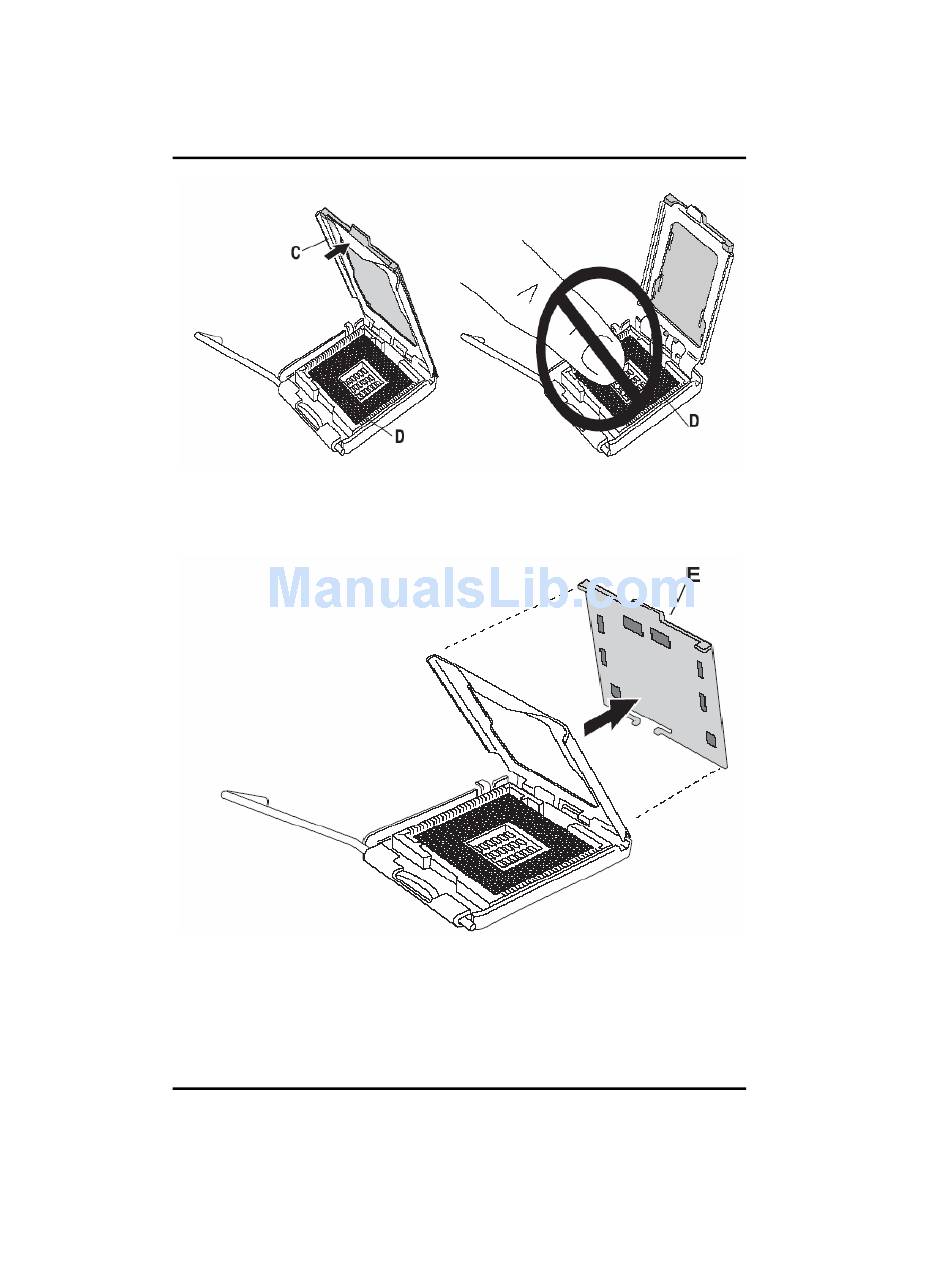

Open the cover (C), you can
see the contact.
Remove the plastic cap (E) from the cover.
Hardware Installation
SBC81203 LGA775 SBC User's Manual
Be careful not to touch the
contact (D).
19
