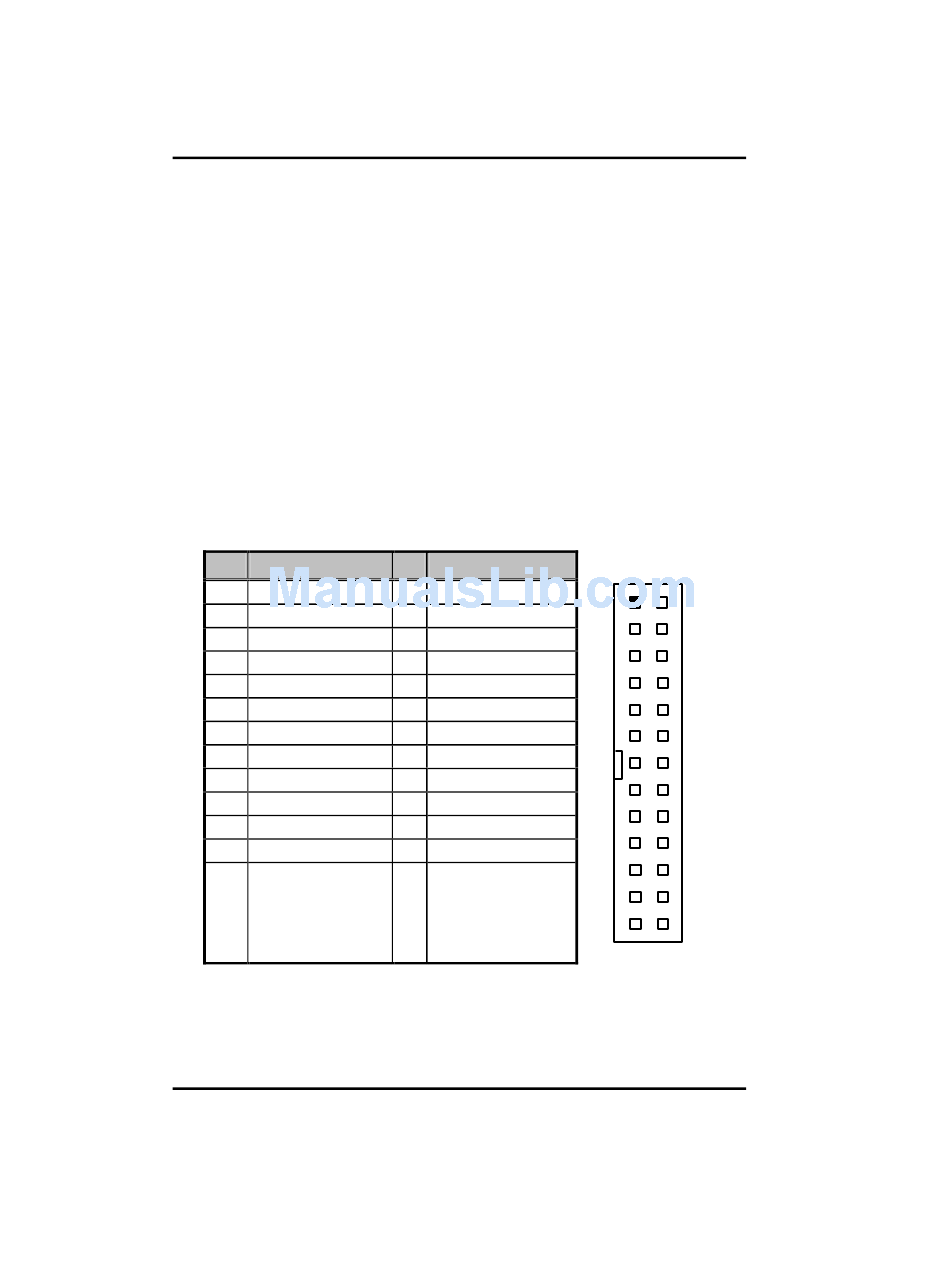

2.4.1 Print Port Connector: PRN1
Print Port Connector [Default]
This board has a multi-mode parallel port to support:
1. Standard Mode:
IBM PC/XT, PC/AT and PS/2™ are compatible with bi-directional
parallel port.
2. Enhanced Mode:
Enhance parallel port (EPP) is compatible with EPP 1.7 and EPP 1.9
(IEEE 1284 compliant).
3. High Speed Mode:
Microsoft and Hewlett Packard extended capabilities port (ECP) is
IEEE 1284 compliant.
Pin Signal
1 Strobe#
3 Data 1
5 Data 3
7 Data 5
9 Data 7
11 Busy
13 Printer Select
15 Error #
17 Printer Select In #
19 GND
21 GND
23 GND
25 GND
10
Pin Signal
2 Data 0
4 Data 2
6 Data 4
8 Data 6
10 Acknowledge #
12 Paper Empty #
14 Auto Form Feed #
16 Initialize #
18 GND
20 GND
22 GND
24 GND
26
Jumpers and Connectors
PRN1
1 1 1 1 2 2 2 2
3 3 3 3 4 4 4 4
5 5 5 5 6 6 6 6
7 7 7 7 8 8 8 8
9 9 9 9 10 10
10 10
11 11 12 12
11 11 12 12
13 13 13 13 14 14 14 14
15 15 15 15 16 16 16 16
17 17 17 17 18 18 18 18
19 19 20 20
19 19 20 20
21 21 21 21 22 22 22 22
23 23 23 23 24 24 24 24
25 25 26 26
25 25 26 26
