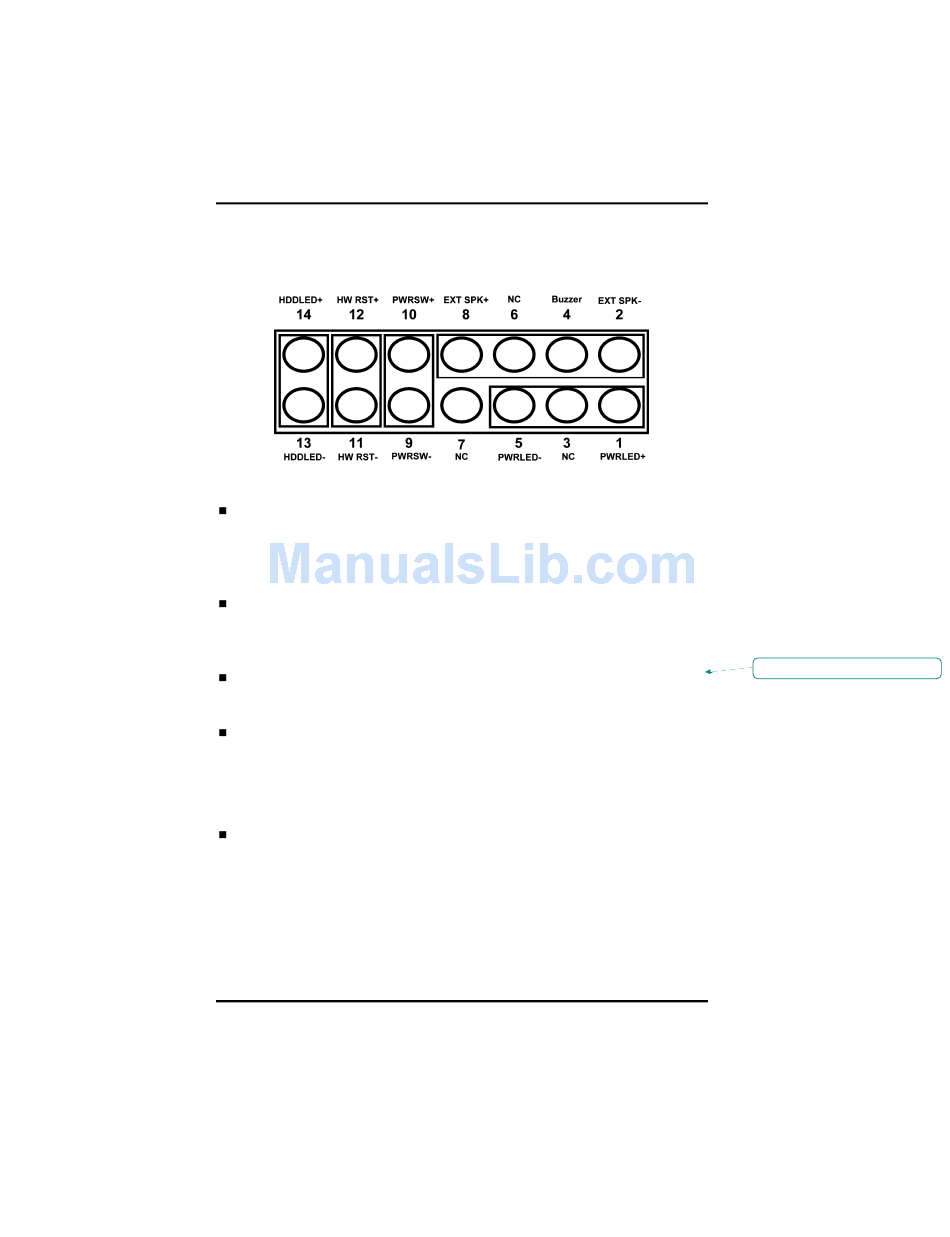

2.4.9 Front Panel Connector: CN5
Power LED
Pins 1, 3, 5 connect the system power LED indicator to its respective
switch on the case. Pin 1 is +, and pin 5 assigned to -. Pin 3 is defined
as NC.
External Speaker and Internal Buzzer Connector
Pins 2, 4, 6, 8 can be connected to the case-mounted speaker unit or
internal buzzer.
Hardware Reset
Pins 11 and 12 are designed for Hardware Reset.
HDD Activity LED
This connector extends to the hard drive activity LED on the control
panel. This LED will flash when the HDD is being accessed. Pins 13
and 14 can be connected to the hard disk drive and front panel HDD
LED.
Power Button
Pins 9 and 10 connect the front panel's ATX power button to the card,
which allows users to control ATX power on or off.
Jumpers and Connectors
SBC81203 LGA775 SBC User's Manual
