SBC81203 LGA775 SBC User's Manual

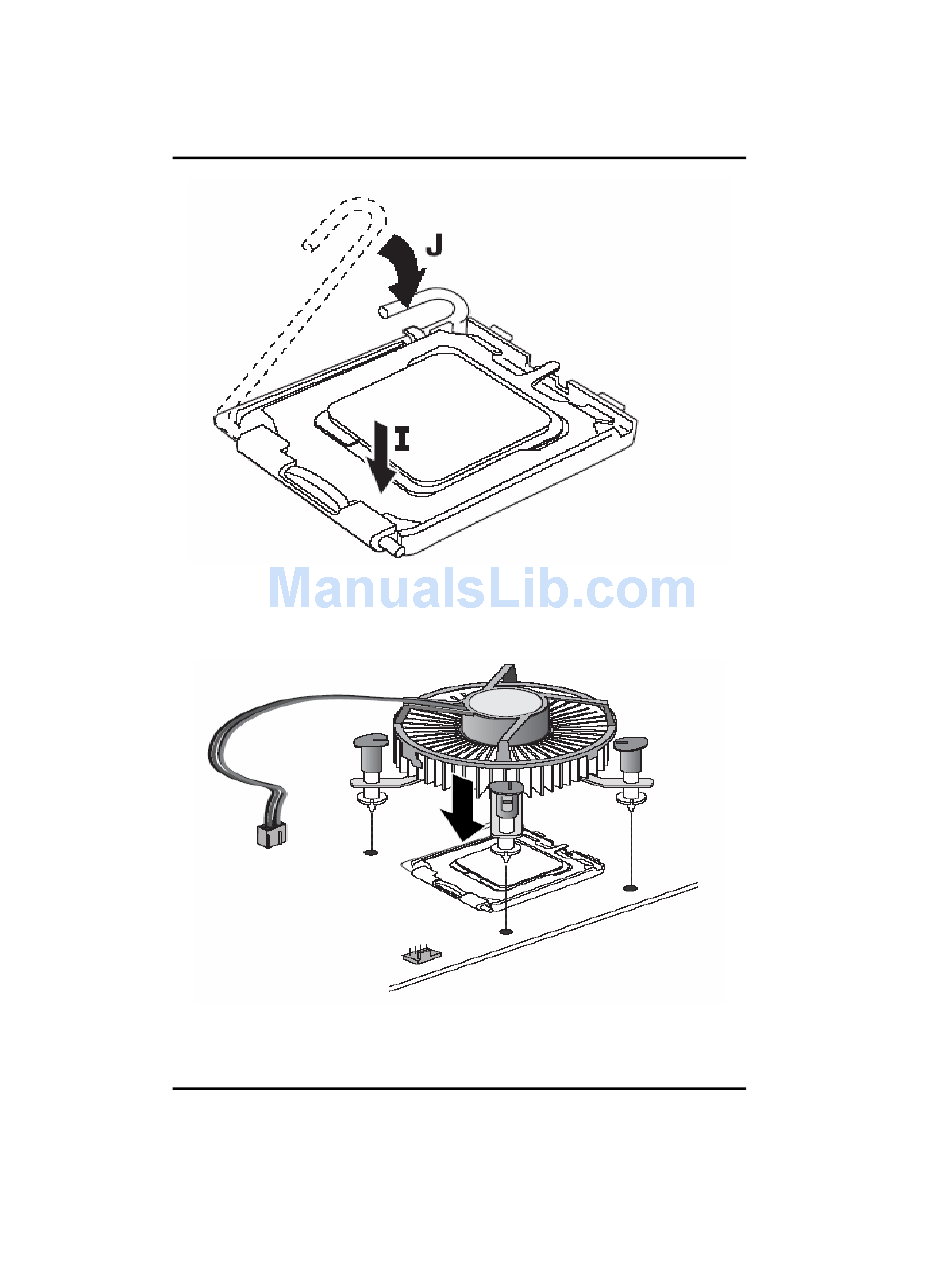

Slightly push down the cover and hook the lever (I~J). The CPU is
completely locked.
Orientate the CPU cooling fan to fixing holes on the board.
Hardware Installation
21
