SBC81203 LGA775 SBC User's Manual
C h a p t e r 3
Hardware Installation
®
Before installing the processor, please access Intel
website for more
detailed information
http://www.intel.com
.
3.1
Installing the Processor
The LGA775 processor socket comes with a cover to protect the
processor. Please install the processor into the CPU socket step by
step as below:

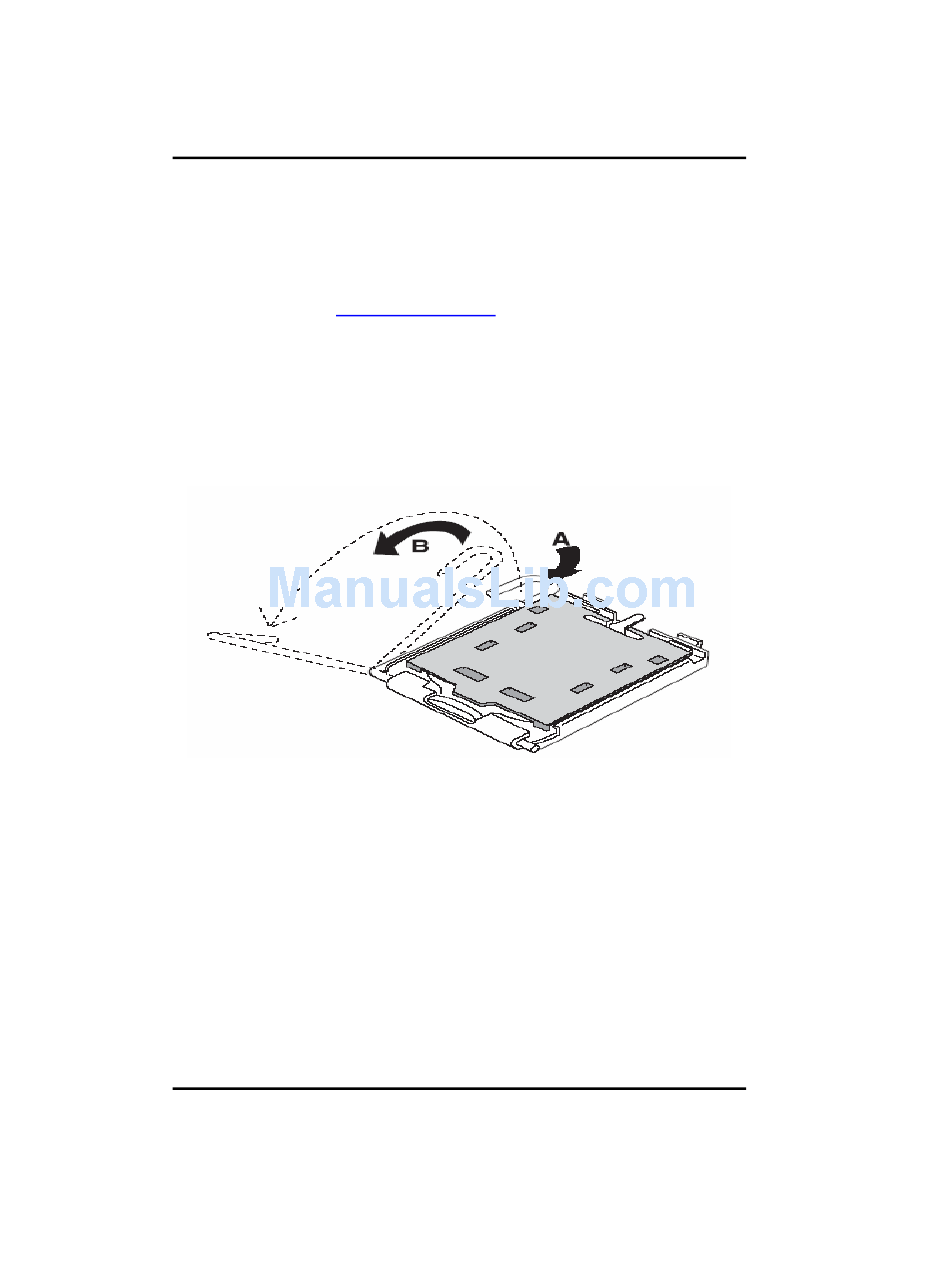

Hold the hook (A) of the lever and push it down.
Pull the lever (B) asisde to unlock the cover.
Hardware Installation
18
