LASER 200
4) A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
during operation.
Repeat the process for the other wheel.

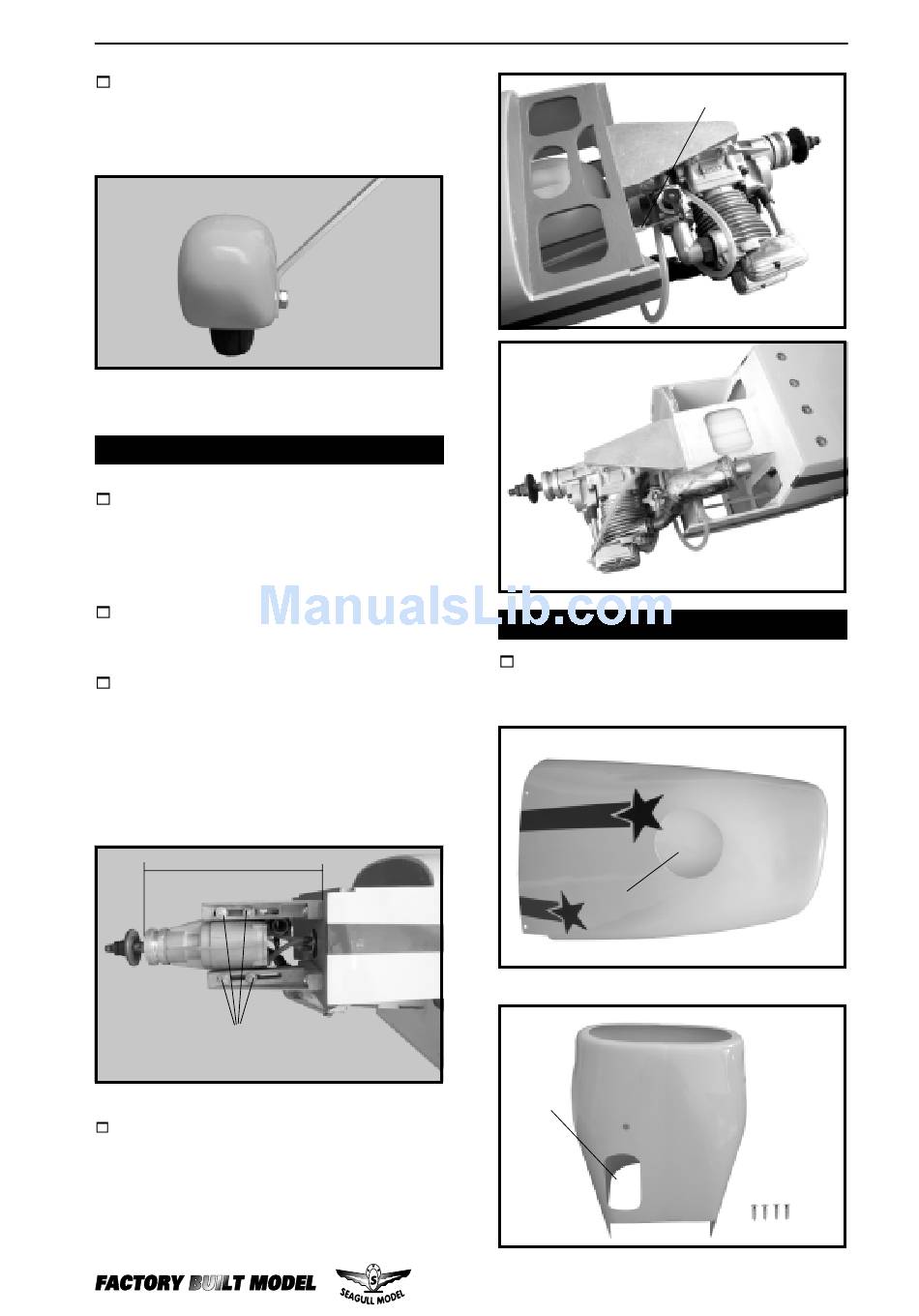

MOUNTING THE ENGINE.

1) Trial fit your engine on the motor mount.
The engine should be positioned so there is
ample clearance in the cowling for spinner
backplate mounted to the prop drive shaft.
2) Marking 4 points on the motor mount.
3) Secure your engine on the motor mount
by mounting with 4 bolts, 8 washers, and 4
nuts provided.
A drop C/A glue on the bolt threads will help
prevent loosening in flight.
150mm.
4MM x 30MM.
4) Attach the Z-Bend in the pushrod wire to
the throttle arm on the carburetor. You will need
to remove the throttle arm from the car- buretor
to be able to attach the Z-bend. When
complete, re-attach the throttle arm to the car-
buretor.
Instruction Manual
Pushrod wire.
COWLING.
1) Slide the fiberglass cowl over the en-
gine and line up the back edge of the cowl
with the marks you made on the fuselage.
Cylinder head.
Muffler exhaust.
Screw set.
11
