Pushrod Installation - Seagull Models Laser 200 Assembly Manual

LASER 200
Elevator control horn.
20
Rudder control horn.
Instruction Manual

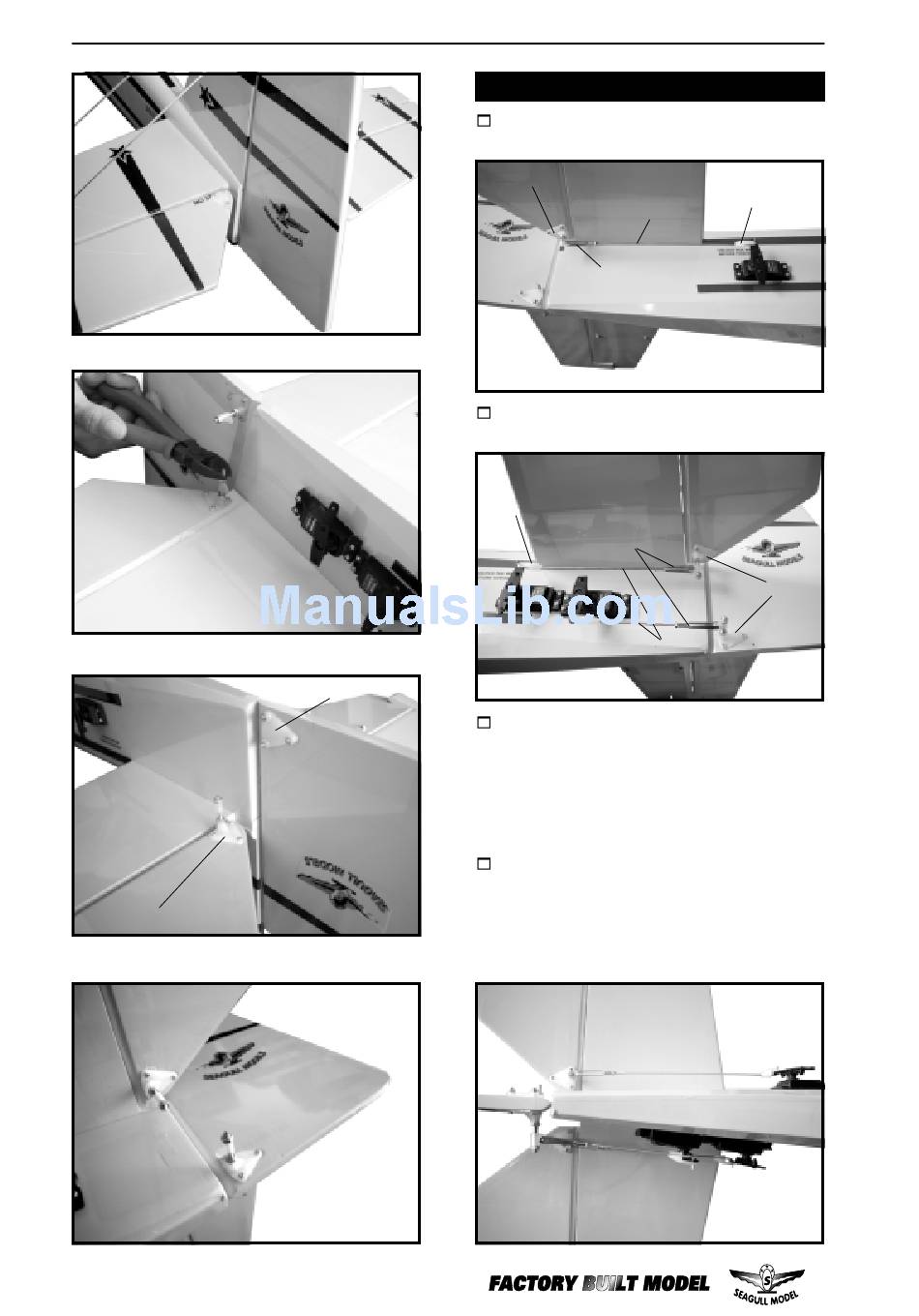

PUSHROD INSTALLATION.

1) Elevator pushrods assembly follow
pictures below.
Control horn.
Pushrod.
Metal clevis.
2) Rudder pushrods assembly follow
picture below.
Connector.
Metal clevis.
Pushrod.
3) Connect the elevator and rudder servos
to your radio's receiver and turn on the sys-
tem. Set the trim tabs on the transmitter to
neutral and center the servo arms. The eleva-
tor and rudder servo arms should be perpen-
dicular to the servos.
4) One at a time, hold the pushrods in po-
sition over the respective servos to check for
proper servo direction. If any servo turns in
the wrong direction, switch your radio's re-
versing switches as necessary to achieve the
correct direction.
Connector.
Control horn.
