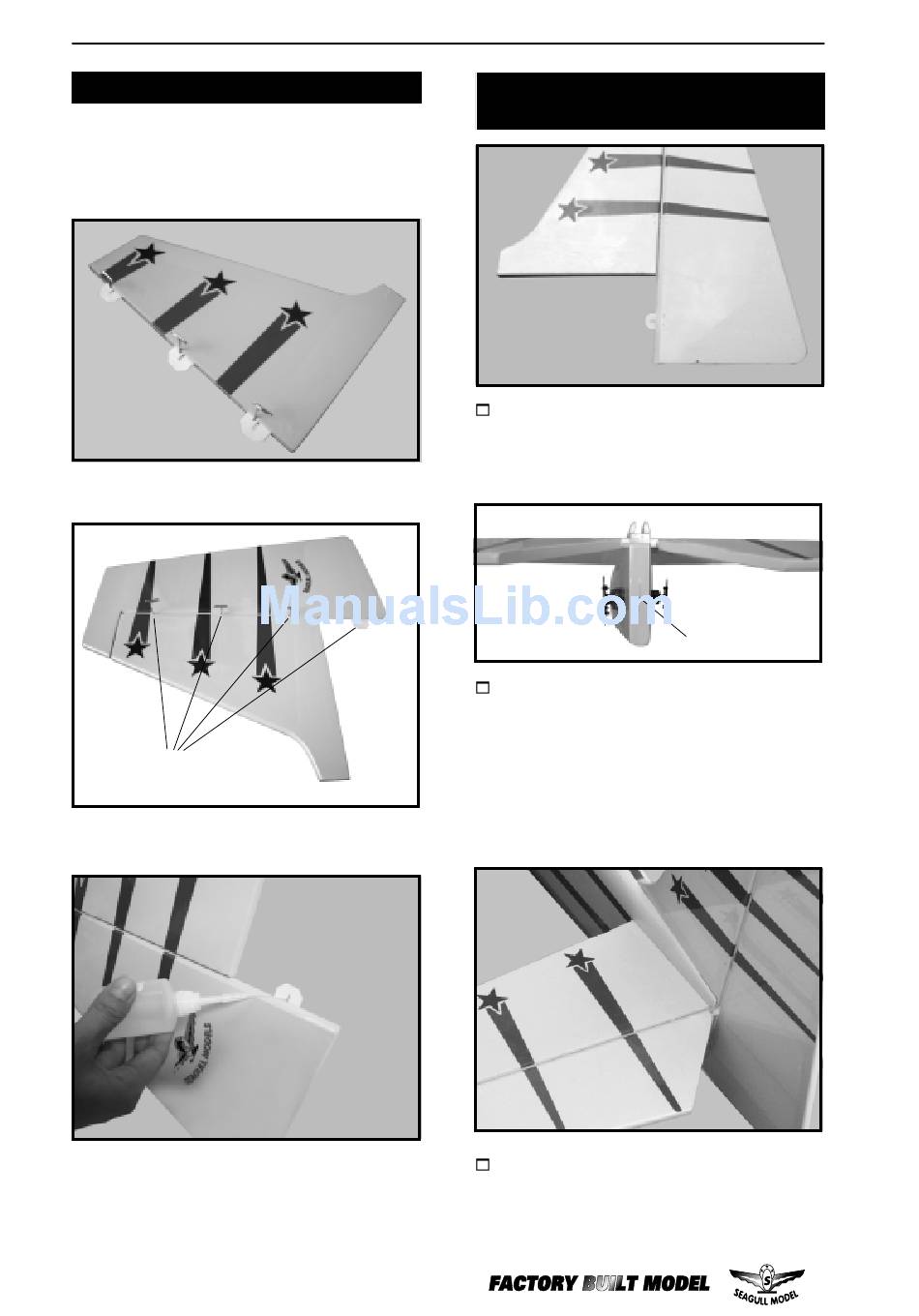

Hinging The Rudder; Vertical Stabilizer Installation - Seagull Models Laser 200 Assembly Manual

LASER 200

HINGING THE RUDDER.

Hinging the rudder refer to hinging the
aileron and elevator.
C/A glue.
16
Instruction Manual
VERTICAL STABILIZER
INSTALLATION.
1) Using a modeling knife, remove the
covering from over the precut hinge slot cut
into the lower rear portion of the fuselage. This
slot accepts the lower rudder hinge.
2) Slide the vertical stabilizer into the slot
in the top of the fuselage. The rear edge of
the stabilizer should be flush with the rear
edge of the fuselage and the lower rudder
hinge should engage the precut hinge slot in
the lower fuselage. The bottom edge of the
stabilizer should also be firmly pushed against
the top of the horizontal stabilizer.
3) While holding the vertical stabilizer
firmly in place, use a pen and draw a line on
each side of the vertical stabilizer where it
meets the top of the fuselage.
Hinge slot.
