INSTALLATION

Electrical wiring diagram

INSTALLATION
„ Electrical wiring diagram

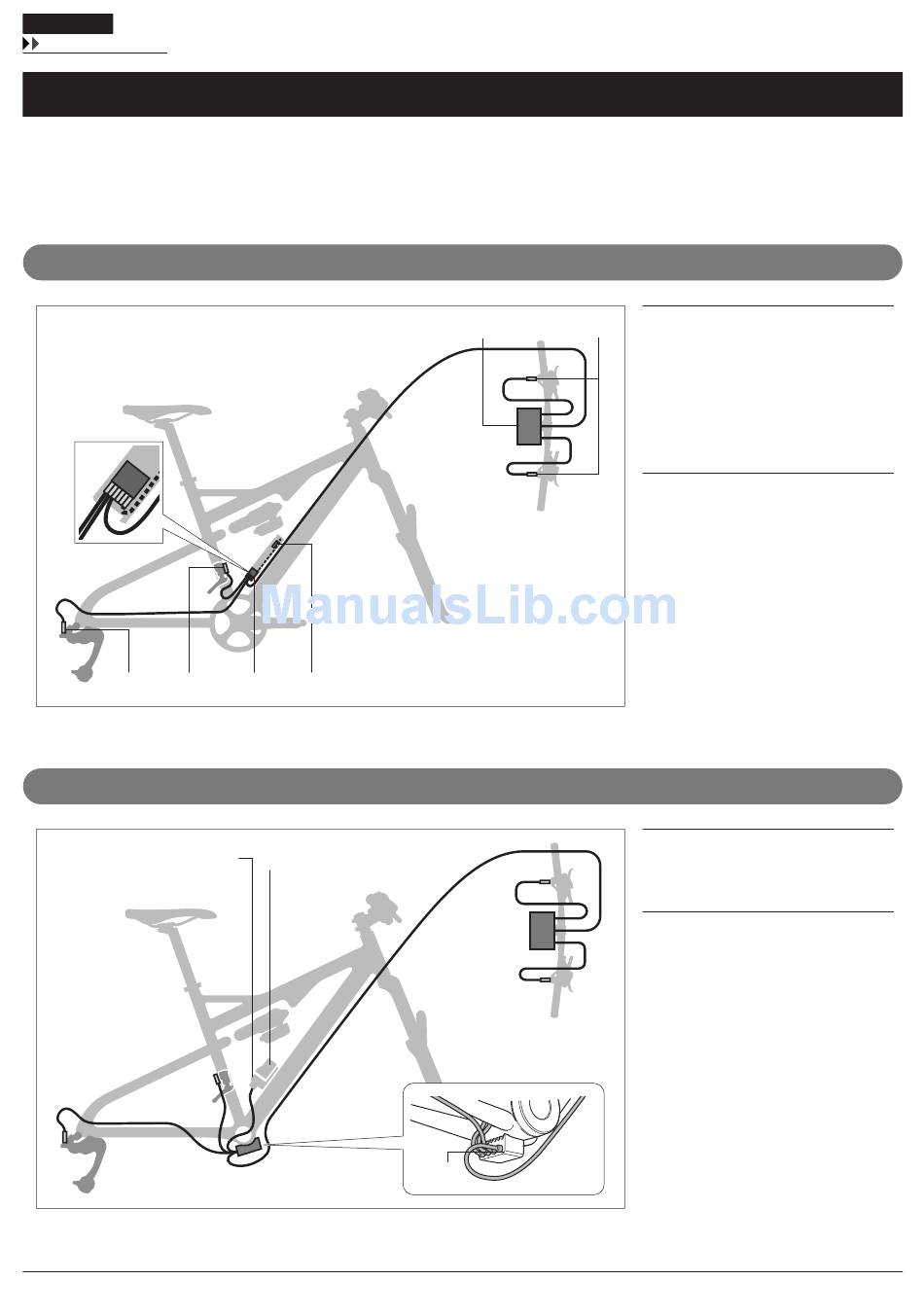

The connections shown below are only examples. The wiring method may differ depending on the type of frame. For details, contact a manufacturer of
completed bicycles.
External battery type (without suspension connection/SM-BTC1)
(C)
(D)
External battery type (without suspension connection/SM-JC40)
(E)
(F)
(A)
(B)
(A)
(B)
(C)
15
(A)
System information display /
junction (A)
(B)
Shifting switch
(C)
Rear derailleur
(D)
Front derailleur
(E)
Battery case SM-BTC1
(F)
Battery SM-BTR2
(A)
Battery mount SM-BMR2
(B)
Battery SM-BTR1
(C)
Junction (B) SM-JC40
