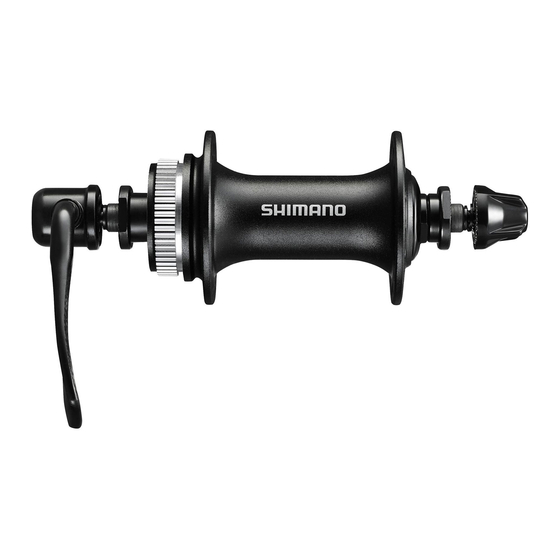

- Page 1 DM-HB0005-06 (English) Dealer's Manual Front hub/ Freehub (Disc brake) HB-M3050 FH-M3050 HB-MT200 FH-MT200-B HB-RM33 FH-RM33 FH-RM35 HB-TX505 FH-TX505 FH-TY505 FH-UR600...
-
Page 2: Table Of Contents
CONTENTS IMPORTANT NOTICE ....................3 TO ENSURE SAFETY ....................4 LIST OF TOOLS TO BE USED .................. 6 INSTALLATION ....................... 8 Spoke lacing ..............................8 Installation of the disc brake rotor ......................8 MAINTENANCE ....................10 Front hub ..............................10 Freehub ...............................11... -
Page 3: Important Notice
• All manuals and technical documents are accessible online at https://si.shimano.com. • For consumers who do not have easy access to the internet, please contact a SHIMANO distributor or any of the SHIMANO offices to obtain a hardcopy of the User's Manual. -
Page 4: To Ensure Safety
• Be sure to follow the instructions provided in the manuals when installing the product. Only use SHIMANO genuine parts. If a component or replacement part is incorrectly assembled or adjusted, it can lead to component failure and cause the rider to lose control and crash. -
Page 5: List Of Tools To Be Used
LIST OF TOOLS TO BE USED... - Page 6 LIST OF TOOLS TO BE USED LIST OF TOOLS TO BE USED The following tools are needed for installation, adjustment, and maintenance purposes. Tool Tool Tool 10 mm hexagon wrench TL-LR15 TL-HS37 12 mm hexagon wrench TL-HS33 Adjustable wrench TL-HS35...
-
Page 7: Installation
INSTALLATION... -
Page 8: Spoke Lacing
INSTALLATION Spoke lacing INSTALLATION „ Spoke lacing Check that the spokes have been laced as shown in the illustration. For front: Left (disc brake rotor) side A radial lacing cannot be used. For front: Right side Rotating direction of wheel For rear: Left (disc brake rotor) side For rear: Right (sprocket) side... -
Page 9: Maintenance
MAINTENANCE... -
Page 10: Front Hub
„ Front hub The front hub can be disassembled as shown in the illustration. Apply grease to the various parts at periodic intervals. (The shape of the part varies depending on the product.) HB-M3050 / MT200 / RM33 / TX505... -
Page 11: Freehub
MAINTENANCE Freehub „ Freehub The freehub can be disassembled as shown in the illustration. Apply grease to the various parts at periodic intervals. (The shape of the part varies depending on the product.) FH-M3050 / RM33 / RM35 / UR600 FH-MT200-B / TX505 / TY505 NOTICE Do not attempt to disassemble the freewheel... - Page 12 MAINTENANCE Freehub Replacement of the freewheel body FH-M3050 / RM33 / RM35 / UR600 After removing the hub axle, remove the Disassembly freewheel body fixing screw (inside the Assembly freewheel body), and then replace the freewheel body. Freewheel body Freewheel body fixing screw 10 mm hexagon wrench Tightening torque 35 - 50 N·m...
- Page 13 Please note: specifications are subject to change for improvement without notice. (English) © Oct. 2020 by SHIMANO INC. ITP...
