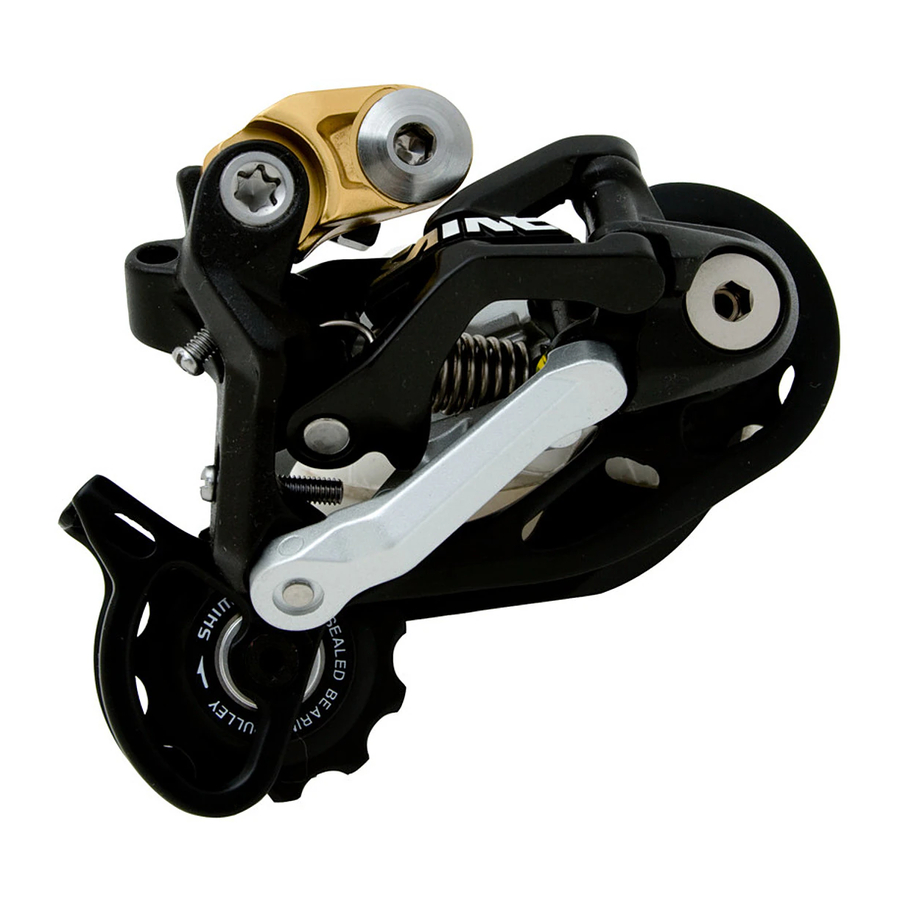

Shimano RD-M810 - Rear Derailleur Service Manual

General Safety Information

• Downhill bicycle riding and off-road bicycle riding are inherently dangerous activities. There is a risk of being involved in an accident that can result in a serious injury or even death. It is strongly recommended that riders wear protective head and body gear and perform thorough safety checks of their bicycles before riding. Please remember that you are riding at your own risk and that you have to consider your experience and your skills very carefully.
• If it is difficult to install the wheel, install the quick release lever on the rotor side. If doing this, make sure that the quick release lever does not interfere with the rotor and that burns do not occur.
• Use neutral detergent to clean the chain. Do not use alkali-based or acid based detergent such as rust cleaners as it may result in damage and/or failure of the chain.
• Use the reinforced connecting pin only for connecting the narrow type of chain. There are two different types of reinforced connecting pins available. Be sure to check the table below before selecting which pin to use. If connecting pins other than reinforced connecting pins are used, or if a reinforced connecting pin or tool which is not suitable for the type of chain is used, sufficient connection force may not be obtained, which could cause the chain to break or fall off.

Chain	Reinforced connecting pin	Chain tool
9-speed super narrow chain such as CN-7701 / CN-HG93	Silver	TL-CN32 / TL-CN27
8- / 7- / 6-speed narrow chain such as CN-HG50 / CN-HG40	Black	TL-CN32 / TL-CN27

• If it is necessary to adjust the length of the chain due to a change in the number of sprocket teeth, make the cut at some other place than the place where the chain has been joined using a reinforced connecting pin or an end pin. The chain will be damaged if it is cut at a place where it has been joined with a reinforced connecting pin or an end pin.

• Check that the tension of the chain is correct and that the chain is not damaged. If the tension is too weak or the chain is damaged, the chain should be replaced. If this is not done, the chain may break and cause serious injury.
• Obtain and read the service instructions carefully prior to installing the parts. Loose, worn or damaged parts may cause the bicycle to fall over and serious injury may occur as a result. We strongly recommend only using genuine Shimano replacement parts.
• Obtain and read the service instructions carefully prior to installing the parts. If adjustments are not carried out correctly, the chain may come off and this may cause you to fall off the bicycle which could result in serious injury.
• Read these Technical Service Instructions carefully, and keep them in a safe place for later reference.

Note

• Depending on the shape of the frame, the rear derailleur may interfere with the chain stay.
• If gear shifting operations do not feel smooth, wash the derailleur and lubricate all moving parts.
• If the amount of looseness in the links is so great that adjustment is not possible, you should replace the derailleur.
• You should periodically clean the derailleur and lubricate all moving parts (mechanism and pulleys).
• If gear shifting adjustment cannot be carried out, check the degree of parallelism at the rear end of the bicycle. Also check if the cable is lubricated and if the outer casing is too long or too short.
• If you hear abnormal noise as a result of looseness in a pulley, you should replace the pulley.
• If the chain keeps coming off the sprockets during use, replace the sprockets and the chain.
• Use a frame with internal cable routing is strongly discouraged as it has tendencies to impair the SIS shifting function due to its high cable resistance.
• Always be sure to use the sprocket set bearing the same group marks. Never use in combination with a sprocket bearing a different group mark.
• Use an outer casing which still has some length to spare even when the handlebars are turned all the way to both sides. Furthermore, check that the shifting lever does not touch the bicycle frame when the handlebars are turned all the way.
• A special grease is used for the gear shifting cable (SIS-SP41). Do not use DURA-ACE grease or other types of grease, otherwise they may cause deterioration in gear shifting performance.
• Grease the inner cable and the inside of the outer casing before use to ensure that they slide properly.
• For smooth operation, use the specified outer casing and the bottom bracket cable guide.
• Operation of the levers related to gear shifting should be made only when the front chainwheel is turning.
• This product is not warranted against damage resulting from use such as jumping while riding or if the bicycle falls over, except if such malfunctions result from non conforming materials or manufacturing methods.
• Parts are not guaranteed against natural wear or deterioration resulting from normal use.
• For maximum performance we highly recommend Shimano lubricants and maintenance products.
• For any questions regarding methods of installation, adjustment, maintenance or operation, please contact a professional bicycle dealer.

In order to realize the best performance, we recommend that the following combination be used.

Specifications

Rear Derailleur

* is for when the mode converter is used

About the mode converter

This derailleur is compatible with two types of sprockets: All-mountain mode (11-32T/ 11-34T) and downhill mode (11-23T/12-25T/11-28T). If using the All-mountain mode sprockets, you will also need to use the mode converter.

Installation of the rear derailleur

Use the force of your hand to check that the mode converter can be pressed against the dropout.

Note: After tensioning the chain, check that the mode converter can be pressed against the dropout.

Bracket spindle Tightening torque: 8 - 10 N·m {70 - 86 in. lbs.}

Removing the mode converter

Tightening torque: 1 - 1.5 N·m {9 - 13 in. lbs.}

SIS Adjustment

1. Top adjustment
   Turn the top adjustment screw to adjust so that the guide pulley is in line with the outer line of the smallest sprocket when looking from the rear.

2. Low adjustment
   Turn the low adjustment screw so that the guide pulley moves to a position directly in line with the largest sprocket.

3. Chain length on bicycles with rear suspension
   The length of A will vary depending on the movement of the rear suspension. Because of this, an excessive load may be placed on the drive system if the chain length is too short. Set the length of the chain by adding two links to the chain when the rear suspension is at a position where dimension "A" is longest and the chain is on the largest sprocket and the largest chainring. If the amount of movement of the rear suspension is large, the slack in the chain may not be taken up properly when the chain is on the smallest chainring and smallest sprocket.
   Add 2 links (with the chain on both the largest sprocket and the largest chainring)
4. Outer casing length
   1. Loosen the B-tension adjustment screw until it is in theposition shown in the illustration.

   2. Check that there is enough slack in the outer casing. Next, align the outer casing with the bottom edge of the outer casing holder at the rear derailleur and then cut of any excess length of outer casing.


Note:
The distance between the outer stopper to the outer casing holder of the rear derailleur may change when the rear suspension moves, so determine the length of the outer casing at the point where this length is at its greatest.
When changing the mode converter settings, particularly when changing the bicycle from mountain to downhill specifications, the outer casing may become shortened. If this happens, it will affect the shifting characteristics, so readjust the length of the outer casing.

Cutting the outer casing

After cutting the outer casing, make the end round so that the inside of the hole has a uniform diameter.

Attach the same outer end cap to the cut end of the outer casing.

The sealed cap with tongue and the rubber shield should be installed to the outer casing stopper of the frame.

* If the rear derailleur moves to a large degree, such as in bicycles with rear suspension, it is recommended that you replace the cap with the accessory aluminum cap.

The end of the outer casing which has the aluminum cap should be at the derailleur side.

Connect the cable to the rear derailleur and, after taking up the initial slack in the cable, re-secure to the front derailleur as shown in the illustration.

Note: Be sure that the cable is securely in the groove.

Tightening torque: 5 - 7 N·m {44 - 60 in. lbs.}

Note:
Set the inner cable so that it protrudes by a length of less than about 30 mm, and then check that the inner cable does not interfere with the spokes of the wheel. Stop the wheel from turning while carrying out this step.

5. How to use the B-tension adjustment screw
   Mount the chain on the smallest chainring and the largest sprocket, and turn the crank arm to shift gears. Then turn the Btension adjustment screw to adjust so that the guide pulley does not interfere with the sprocket but not so close that it touches the chain. Next, set the chain to the smallest sprocket and repeat the above to make sure that the pulley does not touch the sprocket.


<Checking the distance between the largest sprocket and the guide pulley>
Set the rear derailleur to the lowest gear position, stop the wheel from turning, and then check that the distance from the edge of the guide pulley to the edge of the largest sprocket is within the range of 5 - 6 mm. Turn the crank arm to shift gears and check that there is no roughness in the feel. If the number of teeth for the cassette sprocket is changed, carry out this setting again.

All-mountain mode

Downhill mode

6. SIS Adjustment
   Operate the shifting lever several times to move the chain to the 2nd sprocket. Then, while pressing the lever just enough to take up the play in the lever, turn the crank arm.
   For the best SIS performance, periodically lubricate all power-transmission parts.

Replacing the rear derailleur

Note: When removing the tension pulley in order to replace the rear derailleur, remove the E-ring first.

Guide pulley / Tension pulley Tightening torque: 2.45 - 4.9 N·m {21 - 43 in. lbs.}
