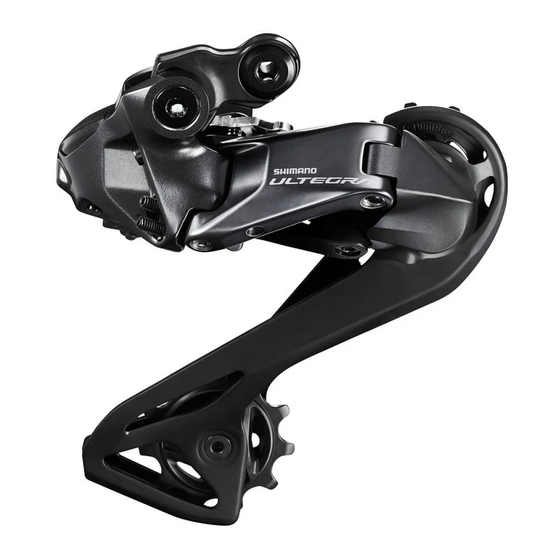

Shimano RD-R8150 User Manual

User's Manual
UM-3GK0A-005-00
Rear Derailleur (Di2) /
Battery Charger
The user's manual can be seen at the following link:
https://si.shimano.com
IMPORTANT NOTICE
• Contact the place of purchase or a distributor for information on
installation, adjustment, and replacement of the products which are not
found in the user's manual. A dealer's manual for professional and
experienced bicycle mechanics is available on our website (https://si.
shimano.com).
• Do not disassemble or modify the product.
• Please observe the appropriate rules and regulations of the country,
state or region in which you conduct your business as a dealer.
• The Bluetooth ® word mark and logos are registered trademarks owned
by the Bluetooth SIG, Inc. and any use of such marks by SHIMANO INC.
is under license. Other trademarks and trade names are those of their
respective owners.
For safety, be sure to read this user's manual thoroughly before
use, and follow it for correct use.
Failure to follow the instructions will result
DANGER
in death or serious injury.
Failure to follow the instructions could
WARNING
result in death or serious injury.
Failure to follow the instructions could
CAUTION
cause personal injury or physical damage
to equipment and surroundings.
Important safety information
Consult your place of purchase or a distributor regarding items
requiring replacement.
Be sure to observe the following instructions in order to avoid
burns or other injury from fluid leakage, overheating, fire, or
explosion.
DANGER
• Use the dedicated charging cable when charging the battery. If any
non-specified items are used, fire, overheating, leakage, or damage to
the connected PC may occur.
• Do not get the charging cable wet and do not touch or hold it while it
is wet or with wet hands. If this is not observed, problems with
operation or electric shocks may occur.
• Use an AC adapter with a USB port that has a voltage of 5.0 V DC and a
current equal to or higher than 1.0 A DC. If the one with a current
lower than 1.0 A is used, the AC adapter may heat up, potentially
causing a fire, smoke, overheating, destruction, electric shock, or burns.
• Do not heat the battery or expose it to flames. If this is not
observed, combustion or bursting of the battery may occur.
• Do not use or leave the battery in hot and humid places such as where
the battery is exposed to direct sunlight, in a closed vehicle on a hot
day, or near a heater. If this is not observed, leakages, overheating or
bursting may cause fire, burns or other injury to occur.
Do not deform, modify, disassemble, or apply solder directly to the
•
battery. If this is not observed, leakages, overheating or bursting
may cause fire, burns or other injury to occur.
• Do not touch the metal terminals with metal items such as hairpins. If
this is not observed, short-circuits, overheating, burns or other injuries
may occur.
WARNING
• Do not disassemble or modify the product. This may cause the product
to not operate correctly, and you may suddenly fall and be seriously
injured.
• When connecting or disconnecting the USB cable or the charging cable,
be sure to hold the cable by the plug. Failure to do so may cause a fire
or electric shock.
• If the following symptoms are observed, stop using the device and
contact your place of purchase. A fire or electric shock may be caused.
– If heat, acrid-smell, or smoke is coming out from the power plug.
– There may be a bad connection inside the power plug.
• If it thunders while charging with an AC adapter with a USB port, do
not touch the device, bicycle, or the AC adapter. If lightning strikes,
electric shocks may occur.
• Do not use a USB hub when connecting the cable to a PC USB port. This
may cause a charging error or fire due to overheating.
• Be careful not to damage the charging cable. Do not damage, process,
forcibly bend, twist or pull it, bring it near hot objects, place heavy
objects on it or bundle it tightly together. If it is used while damaged,
fire, electric shocks or short-circuits may occur.
• If the battery does not become fully charged after 4 hours of charging,
stop charging. If this is not observed, fire, bursting, ignition, or
overheating may occur.
• Do not place this product in water or sea water, and do not allow the
terminals to get wet. If this is not observed, fire, bursting, ignition, or
overheating may occur.
• Do not throw or subject this product to strong shocks. If this is not
observed, bursting, overheating or problems with operation may occur.
• Do not use the battery if leakages, discoloration, deformation or any
other abnormalities occur. If this is not observed, bursting, overheating
or problems with operation may occur.
• Clean the chain and QUICK-LINK with an appropriate chain cleaner
regularly. Intervals between maintenance depend on the use and riding
circumstances. Never use alkali- or acid-based solvents such as rust
cleaners. If those solvents are used the chain or QUICK-LINK might
break and cause serious injury.
• Check the chain for any damage (deformation or cracking), skipping, or
other abnormalities such as unintended gear shifting. If any problems
are found, consult your place of purchase or a distributor. The chain
may break, and you may fall.
CAUTION
• Store in a safe place out of the reach of small children to avoid letting
them swallow by mistake.
• Do not let grease adhere to the metal terminals. A conduction failure
may result.
• Do not leave the charging cable connected when performing
maintenance.
Notice
• The gears should be periodically washed with a neutral detergent then
lubricated. In addition, cleaning the chain and QUICK-LINK with a
neutral detergent and lubricating them can be an effective way of
extending the life of the chain and QUICK-LINK.
• Do not use the thinners or harsh solvents to clean the products. Such
solvents may damage the surface.
• If gear shifting operation does not feel smooth, consult the place of
purchase for assistance.
• If the chain keeps skipping during use, replace the gears and chain at
the place of purchase.
• If there is a large amount of excess play in the pulleys and extra noise is
generated while riding, replace the pulleys at your place of purchase.
• The electric wire has small waterproof connectors, so do not repeatedly
connect and disconnect it too often. Doing so may impair the
waterproofing.
• The components are designed to be fully waterproofed to withstand
wet weather riding conditions; however, do not deliberately place them
into water.
• Do not clean the bicycle with a high-pressure wash. If water gets into
any of the components, operating problems or rusting may result.
• Contact the place of purchase for updates of the component software.
The most up-to-date information is available on the SHIMANO website.
• Do not get the charging cable or charging port wet when connecting
them.
• Be careful not to get water into the E-TUBE ports.
• Handle the components carefully, and avoid subjecting them to strong
shock.
®
• Disconnect the Bluetooth LE connection when not using E-TUBE
PROJECT Cyclist. The rear derailleur does not shift gears when
connected over Bluetooth ® LE.
• Regarding 2.4 GHz digital wireless
This product adopts digital communication technologies in the 2.4 GHz
frequency, which is used for wireless LAN, etc. It may receive
interference in the following locations or environments that prevents
wireless communication from being performed correctly:
– Near a device such as a television, computer, radio, or motor, or
inside an automobile or railway car
– Near a railway crossing or railway track, television transmitting
station, or radar base, etc.
– When using the device in combination with another cordless device
or some lights
® ®
• When not using Bluetooth LE or the ANT function, wireless
communication function can be disabled. For the setting procedure,
refer to the user's manual for E-TUBE PROJECT Cyclist.
E-TUBE PROJECT Cyclist:
https://si.shimano.com/iUM/7J4MA/customization/toc_task_ynb_
fww_1mb
• Do not bundle the charging cable.
• Do not connect the battery charger to PC when it is on standby. This
may cause a PC failure depending on its specifications.
• Do not apply excessive tension to the charging cable.
• Do not extend the charging cable using an extension cable etc.
Extending the cable may disrupt charging.
• Do not ride the bicycle while the charging cable is still connected to it.
• Charging stops if E-TUBE PROJECT is connected while charging.
Reconnect the charging cable after E-TUBE PROJECT is disconnected.
• Charge the battery indoors to avoid exposure to rain or wind.
• Charging can be carried out at any time regardless of the battery level.
Always use the dedicated charging cable and charge the battery until it
is fully charged.
• If the ambient temperature is low, the battery's usable time will be
shorter.
• Store this product or the bicycle with this product installed in a cool
indoor location away from direct sunlight and rain (approx. 10 - 20°C).
If the storage temperature is too low or too high, the performance of
the battery is reduced, and its usable time will be shorter. When you
use the battery after a long storage period, make sure to charge it first.
• When the battery is completely depleted, charge it as soon as possible.
If you leave the battery without charging it, it will cause the battery to
deteriorate.
• The battery is an exhaustible item. The battery will gradually lose its
capacity to charging after repeated use. If the length of time that the
battery can be used and its traveling distance become extremely short,
contact the place of purchase.
• Products are not guaranteed against natural wear and deterioration
from normal use and aging.
• For maximum performance we highly recommend SHIMANO lubricants
and maintenance products.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
Regular inspections before riding the bicycle
Before riding the bicycle, check the following items. If any problems are
found, consult your place of purchase or a distributor.
• Are the fastening sections fixed securely?
• Is there sufficient charge remaining in the battery?
• Is there any noticeable damage to the electric wires?
• Is gear shifting carried out smoothly?
• Has excess play increased in the links?
• Has excess play increased in the pulleys?
• Are there any abnormal noises coming from the derailleur?
• Has the chain become elongated?
• Is there any noticeable damage on the chain?
