Shimano DURA-ACE FC-R9100 Dealer's Manual
Hide thumbs Also See for DURA-ACE FC-R9100:

Advertisement

(English)
ROAD
City Touring/
Comfort Bike
DURA-ACE
FC-R9100

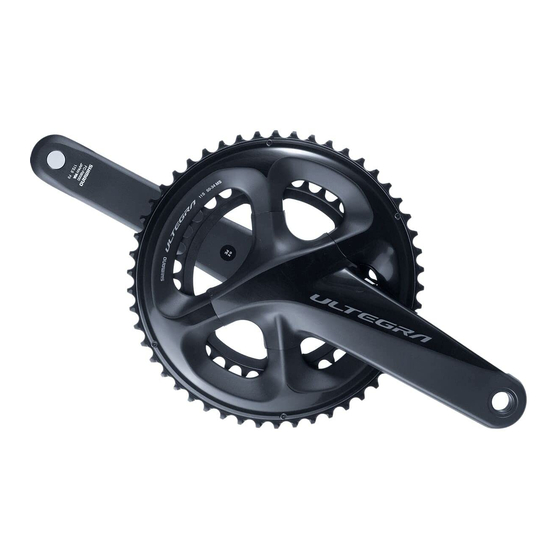

ULTEGRA
FC-R8000
SHIMANO 105
FC-R7000
Bottom bracket
BB-R9100
SM-BBR60
SM-BB92-41B
SM-BB72-41B
MTB
URBAN SPORT
Crankset
Dealer's Manual
Trekking
E-BIKE
DM-RAFC001-04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DURA-ACE FC-R9100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Shimano DURA-ACE FC-R9100

  • Page 1 (English) DM-RAFC001-04 Dealer's Manual ROAD Trekking City Touring/ URBAN SPORT E-BIKE Comfort Bike Crankset DURA-ACE FC-R9100 ULTEGRA FC-R8000 SHIMANO 105 FC-R7000 Bottom bracket BB-R9100 SM-BBR60 SM-BB92-41B SM-BB72-41B...
  • Page 2: Table Of Contents

    CONTENTS IMPORTANT NOTICE ....................3 TO ENSURE SAFETY ....................4 LIST OF TOOLS TO BE USED .................. 8 BB-R9100 ...............................8 SM-BBR60 ..............................8 SM-BB92-41B/SM-BB72-41B .........................9 INSTALLATION ..................... 11 Threaded bottom bracket .........................11 PRESS-FIT BB ...............................14 Installation of the crank ..........................17 MAINTENANCE ....................20 Replacing chainrings ..........................20...
  • Page 3: Important Notice

    • All manuals and technical documents are accessible online at https://si.shimano.com. • For consumers who do not have easy access to the internet, please contact a SHIMANO distributor or any of the SHIMANO offices to obtain a hardcopy of the User's Manual.
  • Page 4: To Ensure Safety

    • Be sure to follow the instructions provided in the manuals when installing the product. Only use SHIMANO genuine parts. If a component or replacement part is incorrectly assembled or adjusted, it can lead to component failure and cause the rider to lose control and crash.
  • Page 5 • This product is not warranted against damage resulting from improper use, such as jumping while riding or if the bicycle falls over, except if such malfunctions are caused by manufacturing methods. • Products are not guaranteed against natural wear and deterioration from normal use and aging. • For maximum performance we highly recommend SHIMANO lubricants and maintenance products.
  • Page 6 TO ENSURE SAFETY For Installation to the Bicycle, and Maintenance: • When installing the pedals, apply a small amount of grease to the threads to prevent the pedals from sticking. Use a torque wrench to securely tighten the pedals. Tightening torque is 35 - 55 N·m. The right crank has a right-hand thread, and the left crank has a left-hand thread. •...
  • Page 7: List Of Tools To Be Used

    LIST OF TOOLS TO BE USED...
  • Page 8 LIST OF TOOLS TO BE USED LIST OF TOOLS TO BE USED The following tools are needed for installation, adjustment, and maintenance purposes. Tool Tool Tool 5 mm hexagon wrench 17 mm spanner Hexalobular [#30] 8 mm hexagon wrench Soft face mallet TL-FC16/TL-FC18 The tools required for installing and removing the bottom bracket differ by model.
  • Page 9 LIST OF TOOLS TO BE USED „ SM-BB92-41B/SM-BB72-41B Tool Tool TL-BB12 TL-BB13...
  • Page 10 INSTALLATION...
  • Page 11: Bb-R9100

    INSTALLATION Threaded bottom bracket INSTALLATION „ Threaded bottom bracket List of tool combinations Use the tools in the correct combination. BB-R9100 NOTICE TL-FC24 & TL-FC32 TL-FC24 & TL-FC33 • For an impact wrench, use TL-FC34 for BB-R9100. Use TL-FC37 for SM-BBR60. Using other tools may damage the tool.
  • Page 12 INSTALLATION Threaded bottom bracket SM-BBR60 TL-FC25 & TL-FC32 TL-FC25 & TL-FC33 TL-FC25 TL-FC32 TL-FC33 TL-FC25 TL-FC25 & TL-FC36 TL-FC37 TL-FC25 TL-FC36...
  • Page 13 Threaded bottom bracket Installation to the bottom bracket shell Grease the left- and right-hand cups and Inner cover use the SHIMANO original tool to install Right-hand cup (left-hand thread) the right-hand cup of the bottom (Right-hand thread for 70 mm...
  • Page 14: Press-Fit Bb

    INSTALLATION PRESS-FIT BB „ PRESS-FIT BB Bottom bracket cups Left-hand cup Inner cover Right-hand cup Bottom bracket shell width Assembly example NOTICE Use a bottom bracket compatible with a shell width of 86.5 mm. • If the frame has openings for the bottom bracket shell, attach an inner cover sleeve Use the inner cover.
  • Page 15 INSTALLATION PRESS-FIT BB Installation to the bottom bracket shell Insert the bottom bracket into the bottom bracket shell. Insert the SHIMANO original tool into TL-BB12 the bottom bracket. Press fit the bottom bracket by 8 mm hexagon wrench tightening with a spanner while making...
  • Page 16 While holding down the end of the removal tool, push the tool in from the other side until it locks in place. Tap the SHIMANO original tool with a Soft face mallet soft face mallet until the end of the bottom bracket is ejected.
  • Page 17: Installation Of The Crank

    Wide groove area (axle) crank arm unit where the groove is wide. Apply grease Premium grease (Y04110000) Use the SHIMANO original tool to TL-FC16/FC18 tighten the cap. Apply grease Premium grease (Y04110000) Tightening torque 0.7 - 1.5 N·m...
  • Page 18 INSTALLATION Installation of the crank Push in the stopper plate and check that Plate pin the plate pin is securely in place, and Stopper plate then tighten the screws of the left crank Left crank arm arm. Tighten both screws equally to the Tightening torque specified tightening torque (12 - 14 N·m).
  • Page 19: Maintenance

    MAINTENANCE...
  • Page 20: Replacing Chainrings

    • Gear shifting performance will be reduced if the installation positions of the chainrings are incorrect. Be sure to install the chainrings in the correct positions. • Make sure to use the correct combination of SHIMANO genuine parts, otherwise the cranks or chainrings may become damaged. Outer side...
  • Page 21 Please note: specifications are subject to change for improvement without notice. (English) © Oct. 2021 by SHIMANO INC. ITP...
