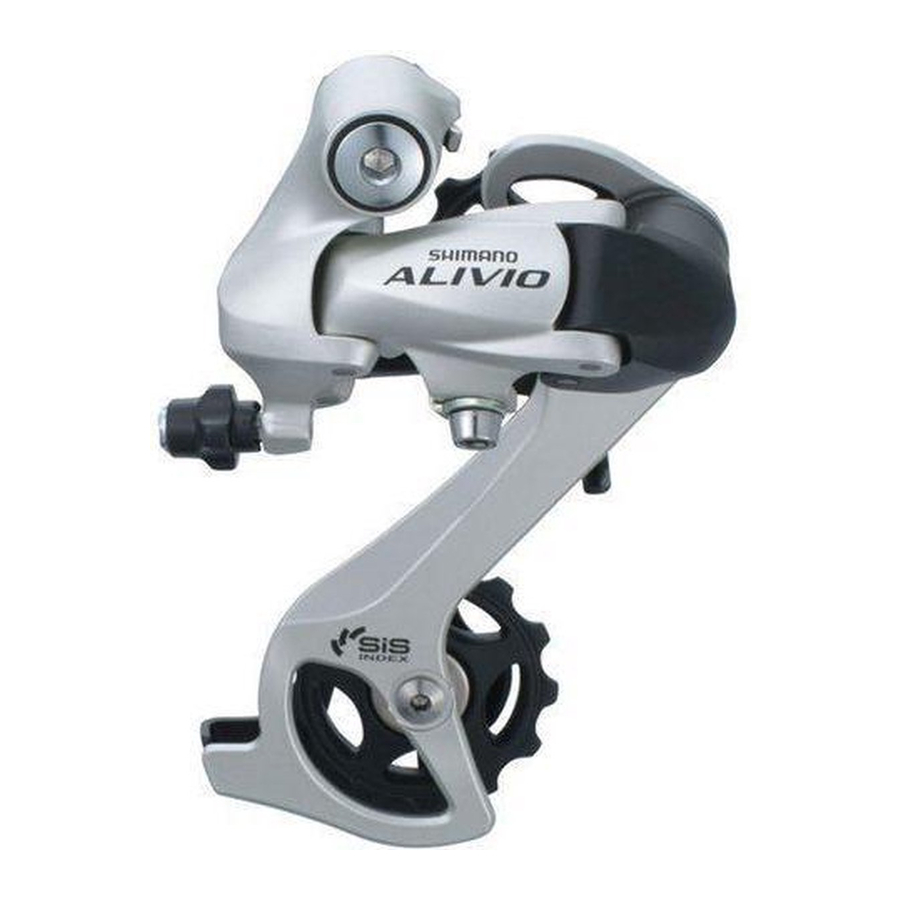

Shimano RD-M410 - Rear Drive System Service Manual

General Safety Information

• Check that the wheels are fastened securely before riding the bicycle. If the wheels are loose in any way, they may come off the bicycle and serious injury may result.
• Use neutral detergent to clean the chain. Do not use alkali-based or acid based detergent such as rust cleaners as it may result in damage and/or failure of the chain.
• Use the reinforced connecting pin only for connecting the narrow type of chain.
• There are two different types of reinforced connecting pins available. Be sure to check the table below before selecting which pin to use. If connecting pins other than reinforced connecting pins are used, or if a reinforced connecting pin or tool which is not suitable for the type of chain is used, sufficient connection force may not be obtained, which could cause the chain to break or fall off.

Chain	Reinforced connecting pin	Chain tool
9-speed super narrow chain such as CN-7701 / CN-HG93	Silver	TL-CN32 / TL-CN23
8- / 7- / 6-speed narrow chain such as CN-HG50 / CN-IG51	Black	TL-CN32 / TL-CN23

• If it is necessary to adjust the length of the chain due to a change in the number of sprocket teeth, make the cut at some other place than the place where the chain has been joined using a reinforced connecting pin or an end pin. The chain will be damaged if it is cut at a place where it has been joined with a reinforced connecting pin or an end pin.

• Check that the tension of the chain is correct and that the chain is not damaged. If the tension is too weak or the chain is damaged, the chain should be replaced. If this is not done, the chain may break and cause serious injury.
• Obtain and read the service instructions carefully prior to installing the parts. Loose, worn, or damaged parts may cause injury to the rider. We strongly recommend only using genuine Shimano replacement parts.
• Read these Technical Service Instructions carefully, and keep them in a safe place for later reference.

Note

• If gear shifting adjustment cannot be carried out, check the degree of parallelism at the rear end of the bicycle. Also check if the cable is lubricated and if the outer casing is too long or too short.
• If you hear abnormal noise as a result of looseness in a pulley, you should replace the pulley.
• If the wheel becomes stiff and difficult to turn, you should lubricate it with grease.
• Do not apply any oil to the inside of the hub, otherwise the grease will come out.
• You should periodically wash the sprockets in a neutral detergent and then lubricate them again. In addition, cleaning the chain with neutral detergent and lubricating it can be a effective way of extending the useful life of the sprockets and the chain.
• If the chain keeps coming off the sprockets during use, replace the sprockets and the chain.
• Always be sure to use the sprocket set bearing the same group marks. Never use in combination with a sprocket bearing a different group mark.
• Use a frame with internal cable routing is strongly discouraged as it has tendencies to impair the SIS shifting function due to its high cable resistance.
• Use an outer casing which still has some length to spare even when the handlebars are turned all the way to both sides. Furthermore, check that the shifting lever does not touch the bicycle frame when the handlebars are turned all the way.
• Grease the inner cable and the inside of the outer casing before use to ensure that they slide properly.
• For smooth operation, use the specified outer casing and the bottom bracket cable guide.
• Operation of the levers related to gear shifting should be made only when the front chainwheel is turning.
• Parts are not guaranteed against natural wear or deterioration resulting from normal use.
• For maximum performance we highly recommend Shimano lubricants and maintenance products.
• For any questions regarding methods of installation, adjustment, maintenance or operation, please contact a professional bicycle dealer.

Specifications

Rear Derailleur

Cassette sprocket tooth combination

Rapidfire Plus

Freehub

Gear shifting operation

Both lever (A) and lever (B) always return to the initial position when they are released after shifting. When operating one of the levers, always be sure to turn the crank arm at the same time.

To shift from a small sprocket to a larger sprocket (Lever A)
To shift one step only, press lever (A) to the (1) position. To shift two steps at one time, press to the (2) position.

To shift from a large sprocket to a smaller sprocket (Lever B)
Press lever (B) once to shift one step from a larger to a smaller sprocket.

Installation of the rear derailleur

When installing, be careful that deformation is not caused by the B-tension adjustment screw coming into contact with the dropout tab.

Bracket spindle tightening torque: 8 - 10 N·m {70 - 86 in. lbs.}

Installation of the sprockets

For each sprocket, the surface that has the group mark should face outward and be positioned so that the triangle () mark on each sprocket and the A part (where the groove width is wide) of the freewheel body are aligned.

For installation of the HG sprockets, use the special tool (TL-LR15) to tighten the lock ring.

Tightening torque: 30 - 50 N·m {261 - 434 in. lbs.}

To replace the HG sprockets, use the special tool (TL-LR15) and TL-SR21 to remove the lock ring.

Chain length

Add 2 links (with the chain on both the largest sprocket and the largest chainring)

Installation of the lever

Use a handlebar grip with a maximum outer diameter of 32 mm.

Tightening torque: 5 N·m {44 in lbs.}

Tightening torque: 6 - 8 N·m {53 - 69 in. lbs.}

SL-M410

• Install the shifting lever in a position where it will not obstruct brake operation and gear shifting operation.
• Do not use in a combination which causes brake operation to be obstructed.

SIS Adjustment

1. Top adjustment
   Turn the top adjustment screw to adjust so that the guide pulley is in line with the outer line of the smallest sprocket when looking from the rear. After this, install the chain.

2. Connecting and securing the inner cable
   Operate lever (B) 7 times or more, and check on the indicator that the lever is at the highest position. Then remove the inner hole cover and connect the inner cable.

   Install the inner hole cover by turning it as shown in the illustration until it stops.
   Do not turn it any further than this, otherwise it may damage the screw thread.

   Tightening torque: 0.3 - 0.5 N·m {3 - 4 in. lbs.}

Inserting the inner cable
Insert the inner cable into the outer casing from the end with the marking on it. Apply grease from the end with the marking in order to maintain cable operating efficiency.

Cutting the outer casing
When cutting the outer casing, cut the opposite end to the end with the marking. After cutting the outer casing, make the end round so that the inside of the hole has a uniform diameter.

Attach the same outer end cap to the cut end of the outer casing.

Connect the cable to the rear derailleur and, after taking up the initial slack in the cable, re-secure to the rear derailleur as shown in the illustration.

Tightening torque: 5 - 7 N·m {44 - 60 in. lbs.}

Cut off the excess length of inner cable and then install the inner end cap.

3. Low adjustment
   While turning the front chainwheel, operate the lever to shift to the lowest gear.
   Turn the low adjustment screw so that the guide pulley moves to a position directly in line with the largest sprocket.

4. How to use the B-tension adjustment screw
   Mount the chain on the smallest chainring and the largest sprocket, and turn the crank arm backward. Then turn the Btension adjustment screw to adjust the guide pulley as close to the sprocket as possible but not so close that it touches. Next, set the chain to the smallest sprocket and repeat the above to make sure that the pulley does not touch the sprocket.

5. SIS Adjustment
   Operate the shifting lever several times to move the chain to the 2nd sprocket. Then, while pressing the lever just enough to take up the play in the lever, turn the crank arm.
   For the best SIS performance, periodically lubricate all power-transmission parts.

Replacement of the freewheel body

After removing the hub axle, remove the freewheel body fixing bolt (inside the freewheel body), and then replace the freewheel body.

Note:
Do not attempt to disassemble the freewheel body, because it may result in a malfunction.

Tightening torque: 35 - 50 N·m {305 - 434 in. lbs.}
