Left View - EUROCOM M5 Pro User Manual

Quick Start Guide
1

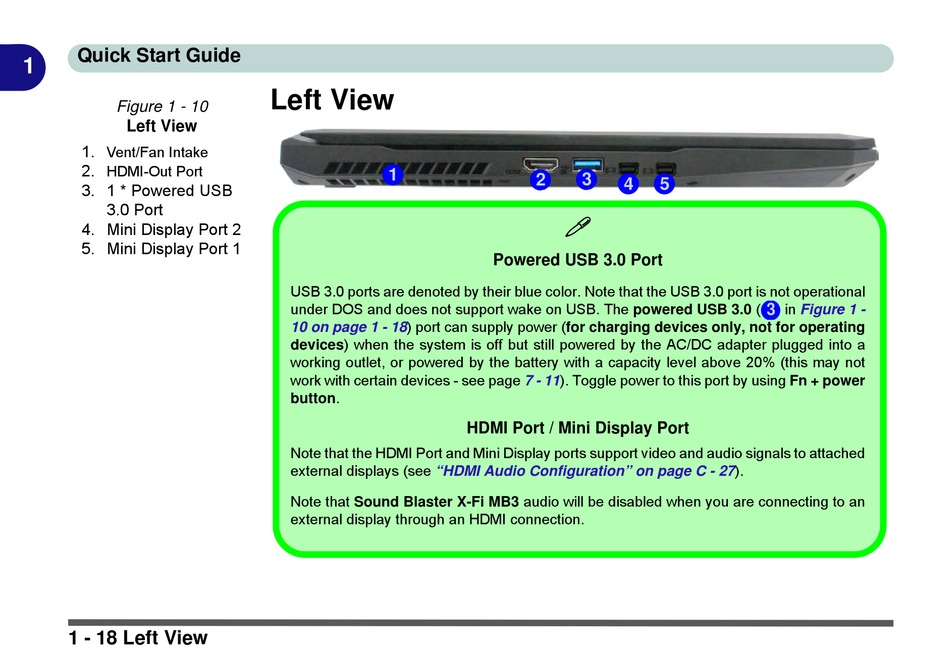

Figure 1 - 10

Left View

1.
Vent/Fan Intake
2.
HDMI-Out Port
3. 1 * Powered USB
3.0 Port
4. Mini Display Port 2
5. Mini Display Port 1
1 - 18 Left View
Left View
1
USB 3.0 ports are denoted by their blue color. Note that the USB 3.0 port is not operational
under DOS and does not support wake on USB. The powered USB 3.0 (
18) port can supply power (for charging devices only, not for operating
10 on page 1 -
devices) when the system is off but still powered by the AC/DC adapter plugged into a
working outlet, or powered by the battery with a capacity level above 20% (this may not
work with certain devices - see page
button.
Note that the HDMI Port and Mini Display ports support video and audio signals to attached
external displays (see
"HDMI Audio Configuration" on page C -
Note that Sound Blaster X-Fi MB3 audio will be disabled when you are connecting to an
external display through an HDMI connection.
3
2
4

Powered USB 3.0 Port
11). Toggle power to this port by using Fn + power
7 -
HDMI Port / Mini Display Port
5
in
3
Figure 1 -
27).
