Hdmi-Out Port - EUROCOM M5 Pro User Manual

Item

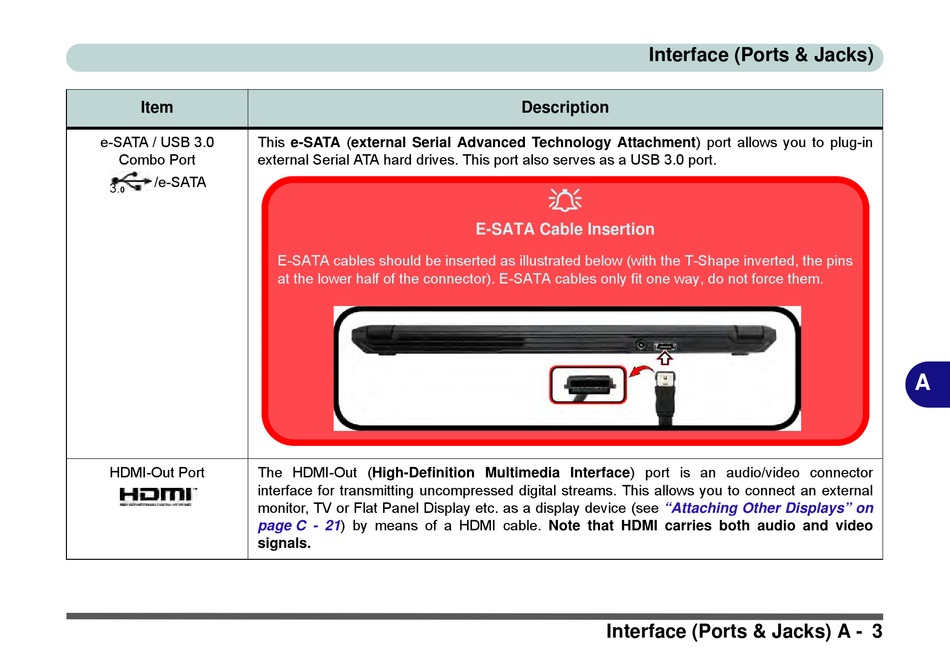

e-SATA / USB 3.0 This e-SATA (external Serial Advanced Technology Attachment) port allows you to plug-in
Combo Port external Serial ATA hard drives. This port also serves as a USB 3.0 port.
/e-SATA
3.
0
E-SATA cables should be inserted as illustrated below (with the T-Shape inverted, the pins
at the lower half of the connector). E-SATA cables only fit one way, do not force them.

HDMI-Out Port

The HDMI-Out (High-Definition Multimedia Interface) port is an audio/video connector
interface for transmitting uncompressed digital streams. This allows you to connect an external
monitor, TV or Flat Panel Display etc. as a display device (see
page C -
signals.
E-SATA Cable Insertion
21) by means of a HDMI cable. Note that HDMI carries both audio and video
Interface (Ports & Jacks)
Description

"Attaching Other Displays" on
Interface (Ports & Jacks) A - 3
