Quick Start Guide
1

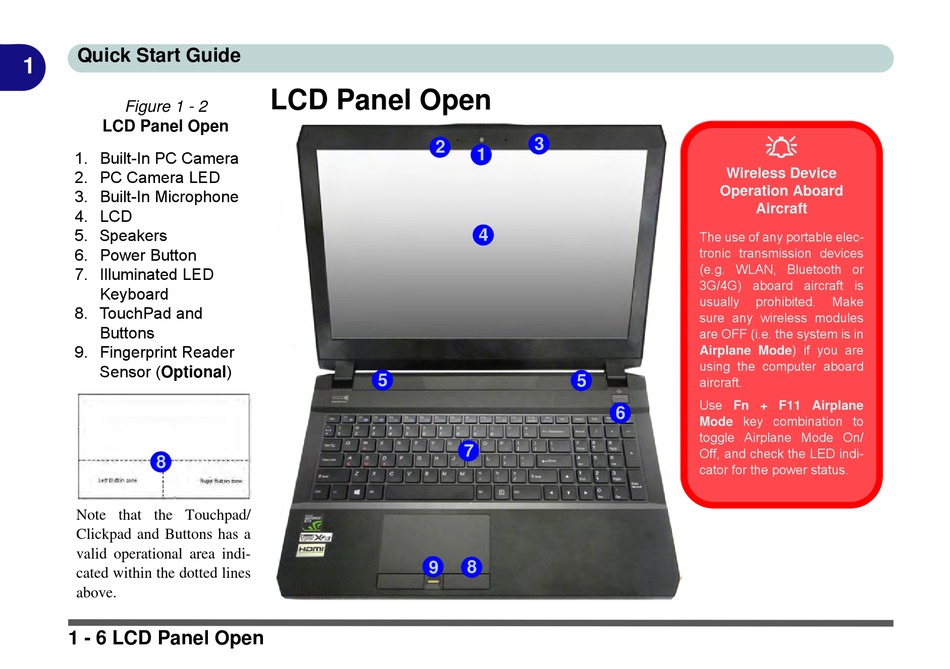

Figure 1 - 2

LCD Panel Open

1. Built-In PC Camera
2. PC Camera LED
3. Built-In Microphone
4. LCD
5. Speakers
6. Power Button
7. Illuminated LED
Keyboard
8. TouchPad and
Buttons
9. Fingerprint Reader
Sensor (Optional)
8
Note that the Touchpad/
Clickpad and Buttons has a
valid operational area indi-
cated within the dotted lines
above.
1 - 6 LCD Panel Open
LCD Panel Open
2
5
9
3
1
4
5
6
7
8

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
(e.g. WLAN, Bluetooth or
3G/4G) aboard aircraft is
usually prohibited. Make
sure any wireless modules
are OFF (i.e. the system is in
Airplane Mode) if you are
using the computer aboard
aircraft.
Use Fn + F11 Airplane
Mode key combination to
toggle Airplane Mode On/
Off, and check the LED indi-
cator for the power status.
