Setup For 5.1Surround Sound - EUROCOM M5 Pro User Manual

Storage Devices, Mouse, & Audio
2

Sound Blaster Audio &
HDMI
Note that the Sound
Blaster audio effects do
not apply to audio gen-
erated through an HDMI
connection (see page
- 48.).
Figure 2 - 4
Speaker
Configuration (5.1)
2 - 6 Audio Features

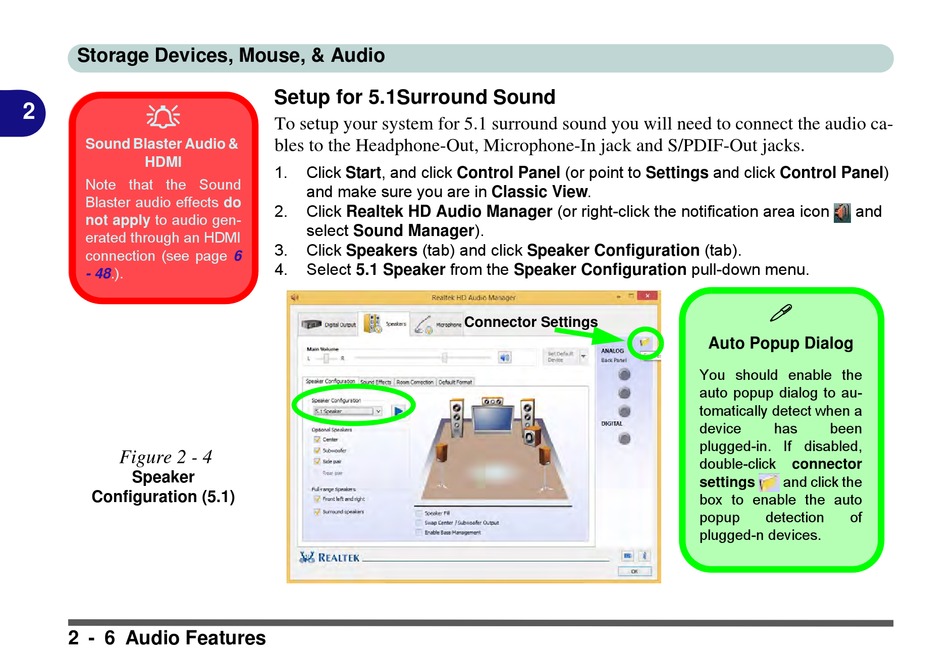

Setup for 5.1Surround Sound

To setup your system for 5.1 surround sound you will need to connect the audio ca-
bles to the Headphone-Out, Microphone-In jack and S/PDIF-Out jacks.
1. Click Start, and click Control Panel (or point to Settings and click Control Panel)
and make sure you are in Classic View.
2. Click Realtek HD Audio Manager (or right-click the notification area icon
select Sound Manager).
3. Click Speakers (tab) and click Speaker Configuration (tab).
6
4. Select 5.1 Speaker from the Speaker Configuration pull-down menu.
Connector Settings
and

Auto Popup Dialog
You should enable the
auto popup dialog to au-
tomatically detect when a
device has been
plugged-in. If disabled,
double-click
connector
and click the
settings
box to enable the auto
popup detection of
plugged-n devices.
