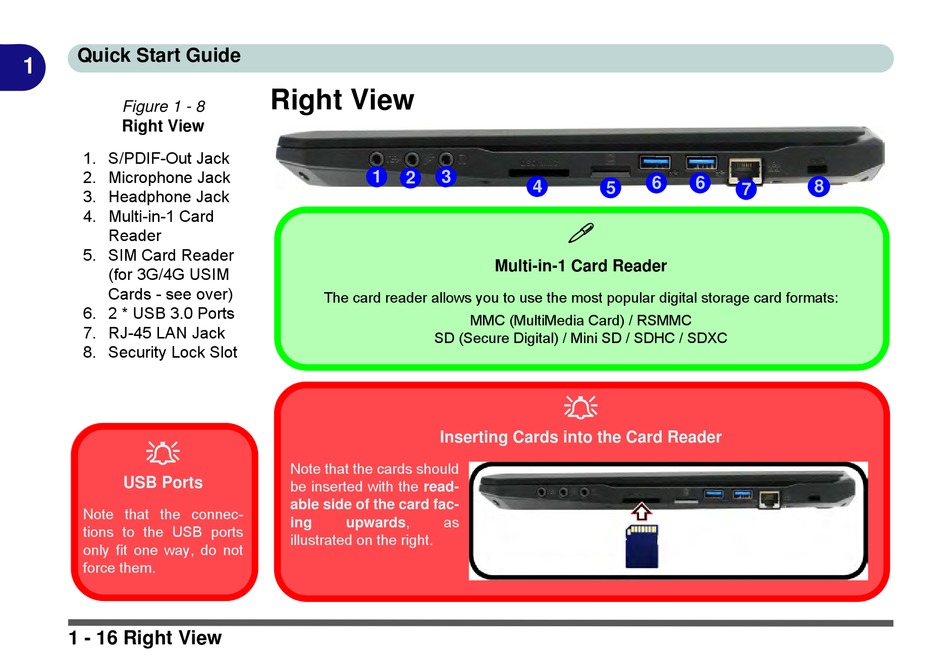

Right View - EUROCOM M5 Pro User Manual

Quick Start Guide
1
Figure 1 - 8

Right View

1. S/PDIF-Out Jack
2. Microphone Jack
3. Headphone Jack
4. Multi-in-1 Card
Reader
5. SIM Card Reader
(for 3G/4G USIM
Cards - see over)
6. 2 * USB 3.0 Ports
7. RJ-45 LAN Jack
8. Security Lock Slot

USB Ports
Note that the connec-
tions to the USB ports
only fit one way, do not
force them.
1 - 16 Right View
Right View
1 3
2
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC
Inserting Cards into the Card Reader
Note that the cards should
be inserted with the read-
able side of the card fac-
as
ing upwards,
illustrated on the right.
6
4
5

Multi-in-1 Card Reader
MMC (MultiMedia Card) / RSMMC

6
8
7
