Front & Rear Views
1
2
E-SATA cables should be inserted as illustrated below (with the T-Shape inverted, the pins
at the lower half of the connector). E-SATA cables only fit one way, do not force them.
1

E-SATA Cable Insertion
4
3
Front & Rear Views 1 - 15
Quick Start Guide

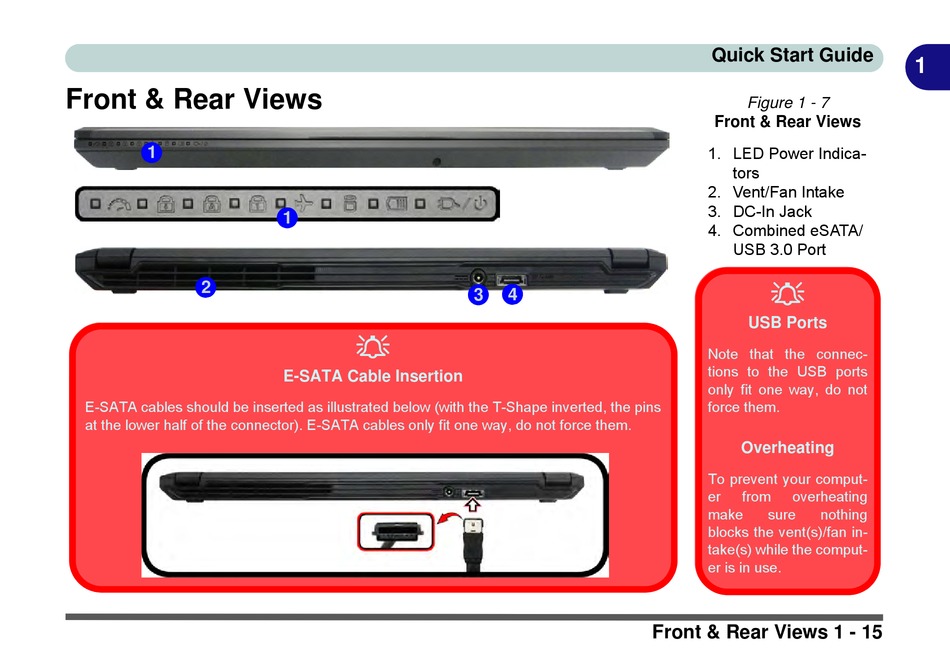

Figure 1 - 7
Front & Rear Views
1. LED Power Indica-
tors
2. Vent/Fan Intake
3. DC-In Jack
4. Combined eSATA/
USB 3.0 Port

USB Ports
Note that the connec-
tions to the USB ports
only fit one way, do not
force them.
Overheating
To prevent your comput-
er from overheating
make sure nothing
blocks the vent(s)/fan in-
take(s) while the comput-
er is in use.
