Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors

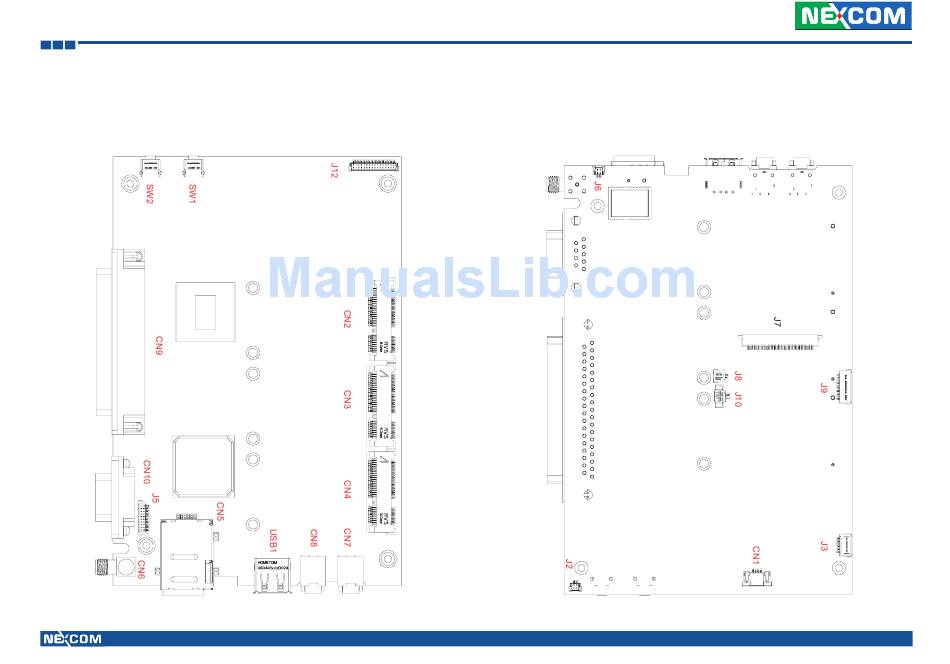

The figure below is the main board which is the board used in the VMC 1000 system. It shows the locations of the jumpers and connectors.
17
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
VMC 1000 User Manual
