Chapter 1: Product Introduction

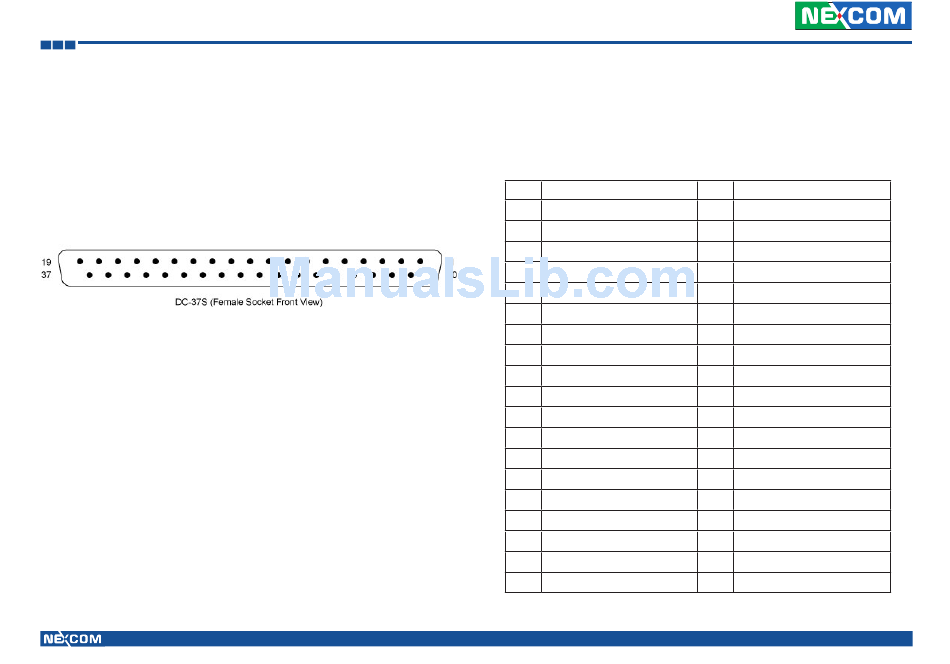

DB37 PIN Connector
Connector location: CN9
Connector size: Female DB37 PIN Connector
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
Pin
Definition
1
LAN_M0P
2
LAN_M1P
3
LAN_M2P
4
LAN_M3P
5
L_GND
6
G_IN1
7
G_IN2
8
G_IN3
9
USB_VCC5
10
HUSB_6P_R
11
HUSB_7P_R
12
U_GND
13
RS422_RX+ / RS485_+
14
RS422_RX- / RS485_-
15
SP_RI_1
16
SP_DCD_1
17
SP_TXD_1
18
SP_CTS_1
19
SP_DTR_1
11
Pin
Definition
20
LAN_M0N
21
LAN_M1N
22
LAN_M2N
23
LAN_M3N
24
G_OUT1
25
G_OUT2
26
G_OUT3
27
USB_VCC5
28
HUSB_6N_R
29
HUSB_7N_R
30
RS422_TX+
31
RS422_TX-
32
CANH
33
CANL
34
C_GND
35
SP_RXD_1
36
SP_RTS_1
37
SP_DSR_1
