Chapter 2: Jumpers and Connectors

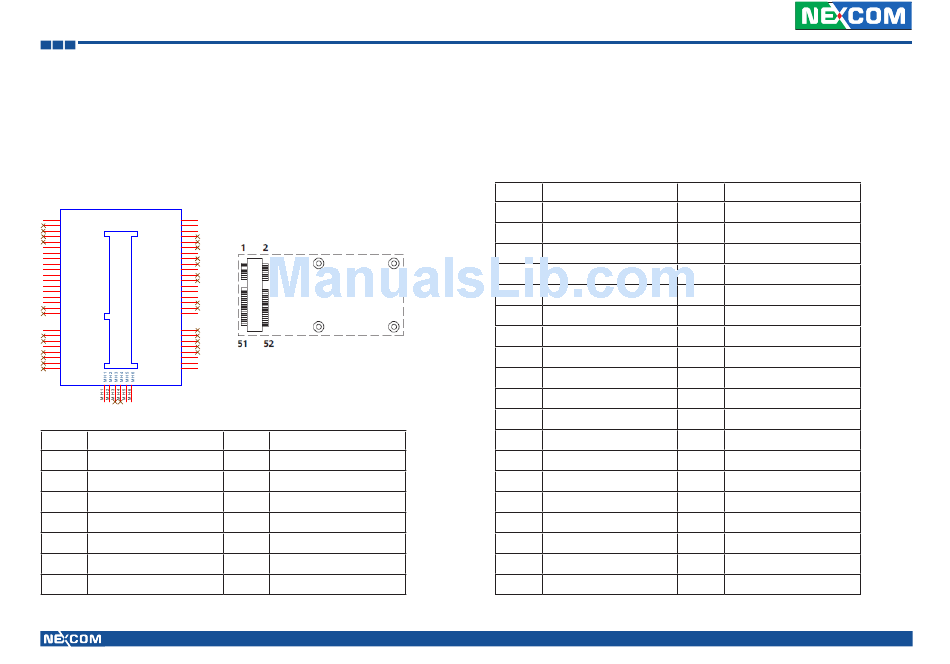

MINI PCIE Connector
MINI PCIE Connector Interface: M-Sata
Connector location: CN2
CN2
MINI PCIE CON
51
52
REV1
3.3VSB_2
49
50
Ver:1.2
REV2
GND7
47
48
REV3
1.5V_1
45
46
REV4
LED_WPAN#
43
44
GND14
LED_WLAN#
41
42
3.3VSB_5
LED_WWAN#
39
40
3.3VSB_4
GND8
37
38
GND13
USB_D+
35
36
GND0
USB_D-
33
34
PETp0
GND9
31
32
PETn0
SMBDAT
29
30
GND2
SMBCLK
27
28
GND3
1.5V_2
25
26
PERp0
GND10
23
24
PERn0
3.3VSB_1
21
22
GND4
PERST#
19
20
REV9/UIM_C4
W_DISABLE#
17
18
REV10/UIM_C8
GND11
15
16
GND5
UIM_VPP
13
14
REFCLK+
UIM_RESET
11
12
REFCLK-
UIM_CLK
9
10
GND6
UIM_DATA
7
8
CLKREQ#
UIM_PWR
5
6
COEX2
1.5V_3
3
4
COEX1
GND12
1
2
WAKE#
3.3VSB_3
PIN
Definition
1
NC
2
+3.3C_MINI
3
NC
4
GND
5
NC
6
D15VS
7
NC
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
PIN
Definition
27
GND
28
D15VS
29
GND
30
NC
31
SATA_RXN1
32
NC
33
SATA_RXP1
PIN
Definition
8
NC
9
GND
10
NC
11
NC
12
NC
13
NC
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
NC
21
GND
22
NC
23
SATA_TXP1
24
+3.3C_MINI
25
SATA_TXN1
26
GND
24
PIN
Definition
34
GND
35
GND
36
NC
37
GND
38
NC
39
+3.3C_MINI
40
GND
41
+3.3C_MINI
42
NC
43
NC
44
NC
45
NC
46
NC
47
NC
48
D15VS
49
NC
50
GND
51
GND
52
+3.3C_MINI
