Chapter 1: Product Introduction

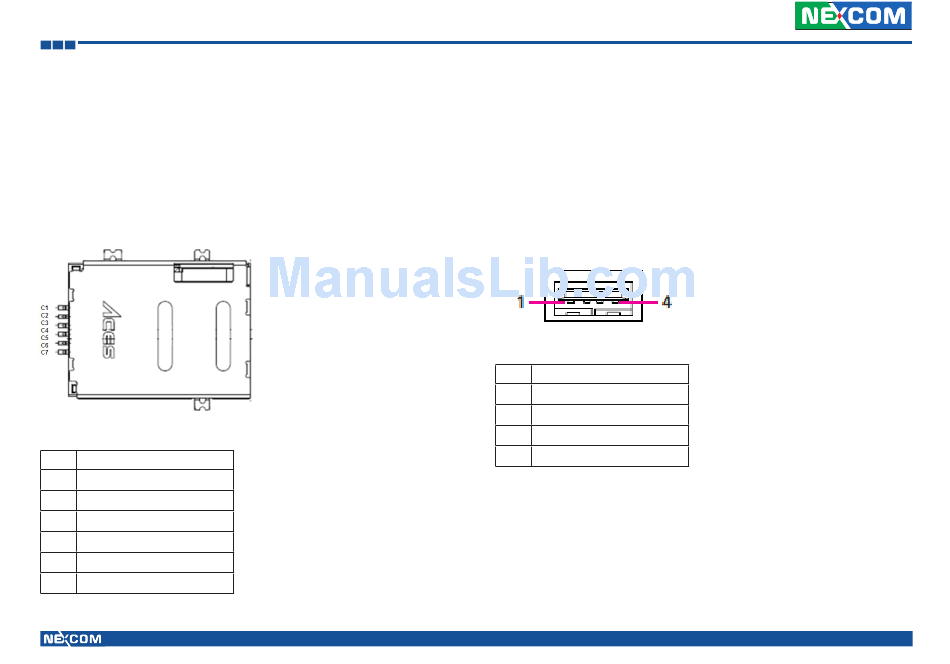

SIM Card Reader Connector
Connector location: CN5
Pin Definition
UIM_PWR2
C1
C2 UIM_RST2
C3 UIM_CLK2
GND
C5
NC
C6
C7 UIM_DAT2
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved

USB Connector

Connector location: USB1
Connector size: Single USB 4Pin
Pin Definition
1 VCC
DATA-( USB_0N)
2
DATA+( USB_0P)
3
4 GND
13
