Chapter 2: Jumpers and Connectors

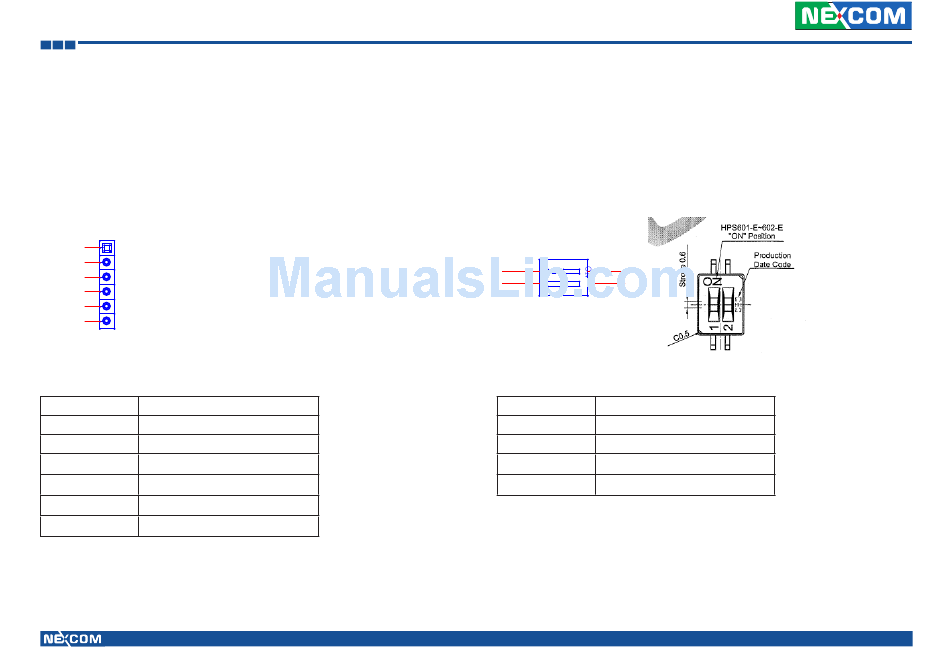

GAL Download Connector

Connector size: 2.54mm PIN HEADER 6Pin 180
Connector location: JP2
JP2
1
2
3
4
5
6
PIN-M-180-2.54mm
PIN Definition
1 V3P3_G
2 GND
3 TCK
4 TDO
5 TDI
6 TMS
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
O
27

Input Voltage Control Switch

Connector size: 2x2 DIP SWITCH 180
Connector location: SW3
SW3
1 4
2 3
PIN Definition
1 POWERSW
2 12V24V
3 GND
4 GND
O
