Panel Connector - Nexcom VMC 1000 User Manual

Chapter 2: Jumpers and Connectors
Internal Connectors and Jumper Settings

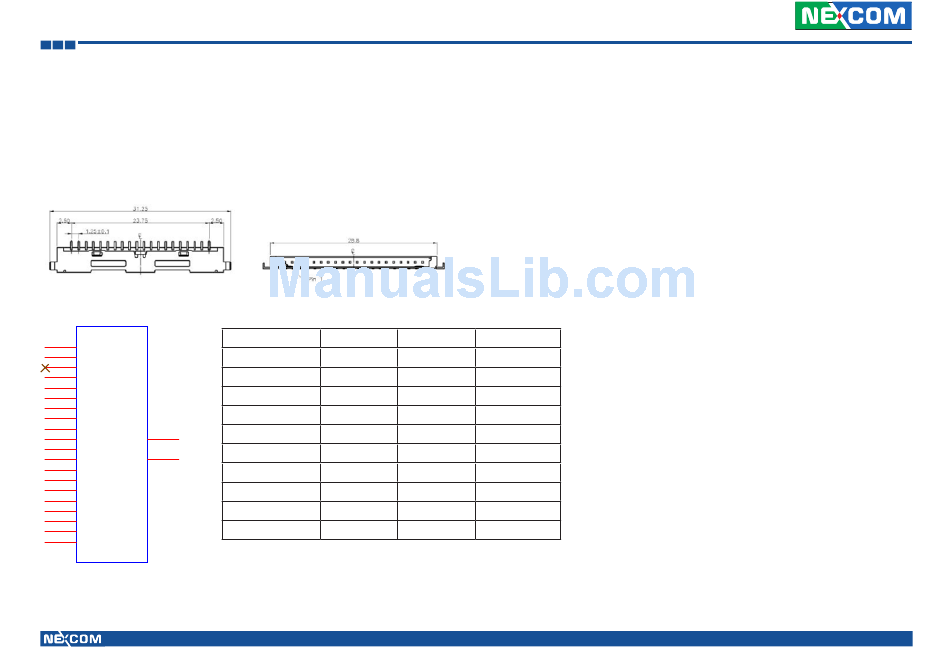

Panel Connector

Connector size: 1.25mm WAFER 20P
Connector location: J7
J7
1
RX3+
2
RX3-
3
NC
4
FRC
5
GND3
6
RXC+
7
RXC-
8
GND2
9
RX2+
10
RX2- MH2
11
GND1
12
RX1+ MH1
13
RX1-
14
GND0
15
RX0+
16
RX0-
17
LR
18
UD
19
VCC_IN1
20
VCC_IN2
LCD_CON_20P
Copyright © 2011 NEXCOM International Co., Ltd. All rights reserved
PIN Definition PIN
1 RX3+ 11
2 RX3- 12
3 NC 13
4 FRC 14
5 GND3 15
6 RXC+ 16
7 RXC- 17
8 GND2 18
9 RX2+ 19
10 RX2- 20
Definition
GND1
RX1+
RX1-
GND0
RX0+
RX0-
LR(default:1)
UD(default:0)
VCC_IN1
VCC_IN2
