Polycom RSS 2000 User Manual page 93

Name shows the file's full pathname on the current computer. % shows
the percentage of the file uploaded; 100% will be shown after the file has
been successfully uploaded. Direction shows the file transfer direction;
"upload" will be shown in this spot. If the user wish to delete any file in
this list, he can use the mouse to select the file, and press the "Delete" key
on the keyboard; he can also highlight the file, press the right mouse
button, and click on "Delete." Deletion of multiple files is permitted.
•
Area 2 contains functions for controlling file upload. The function of each
button will be described in detail below.
•
Area 3 (Selected Item Information) displays detailed information about
each file to be uploaded. Selecting one of the files listed in Area 1 will
show information about that file in this area, as shown below.

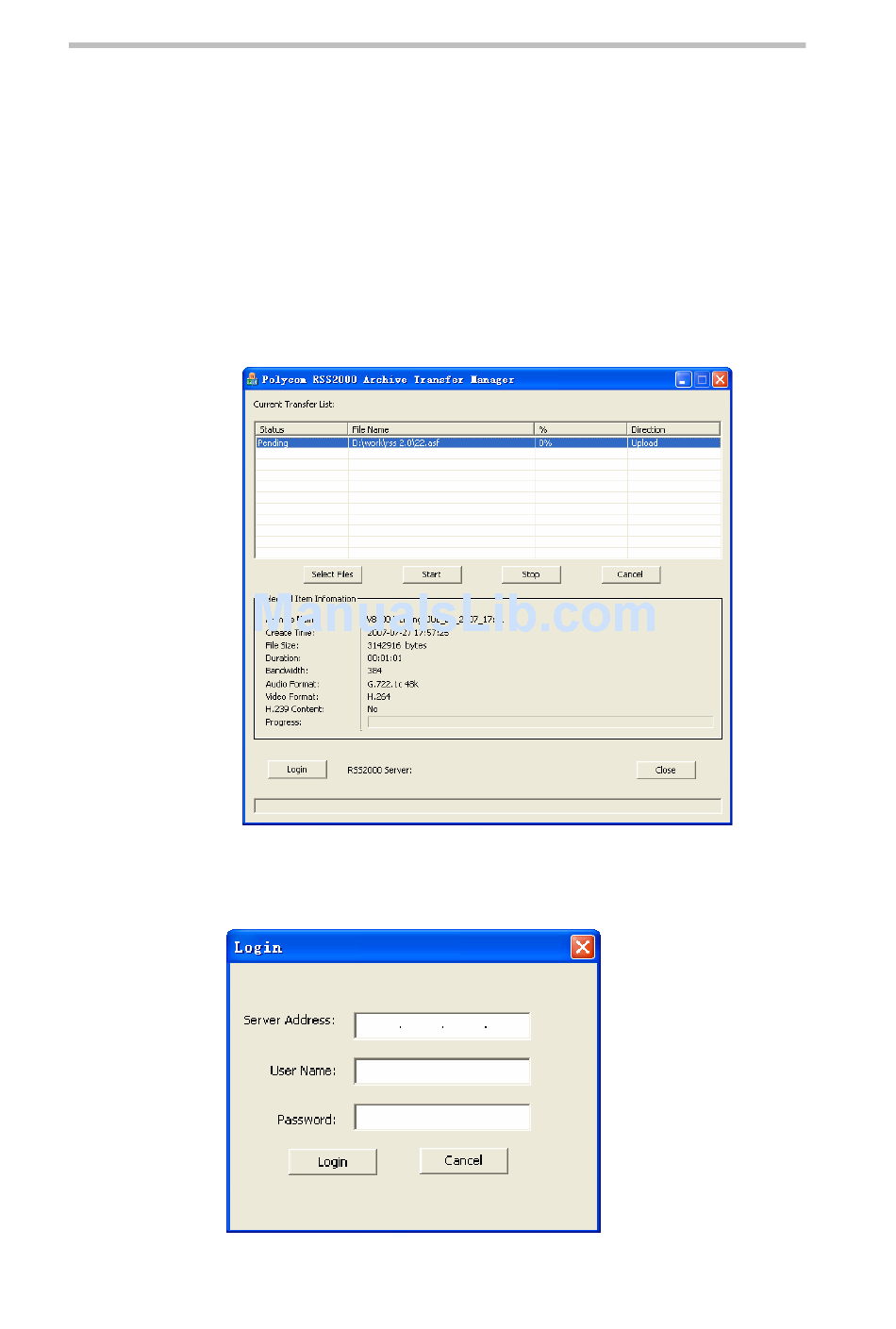

Figure 6-15 Video file information
•
Area 4 is used to login to the RSS 2000 server. Clicking on "Login" will
cause the login screen shown Figure 6-16 to pop up.
Figure 6-16 Login dialog box
Polycom RSS 2000 User Guide
6-11
