Chapter 2 - Web User Interface (UI)

Logging into RSS 2000 via the Web

Enter the RSS 2000's IP address in the address field and press enter. The user
will see the RSS 2000's login page, as shown in Figure 2-1.
After correctly entering a user name and password in the login screen, press
enter to log in. The default user name is "Administrator" and the default
password is "polycom". These defaults are pre-set for use in first-time log in.
A single click on a blank part of the screen will clear the entered user name
and password, allowing new values to be entered.

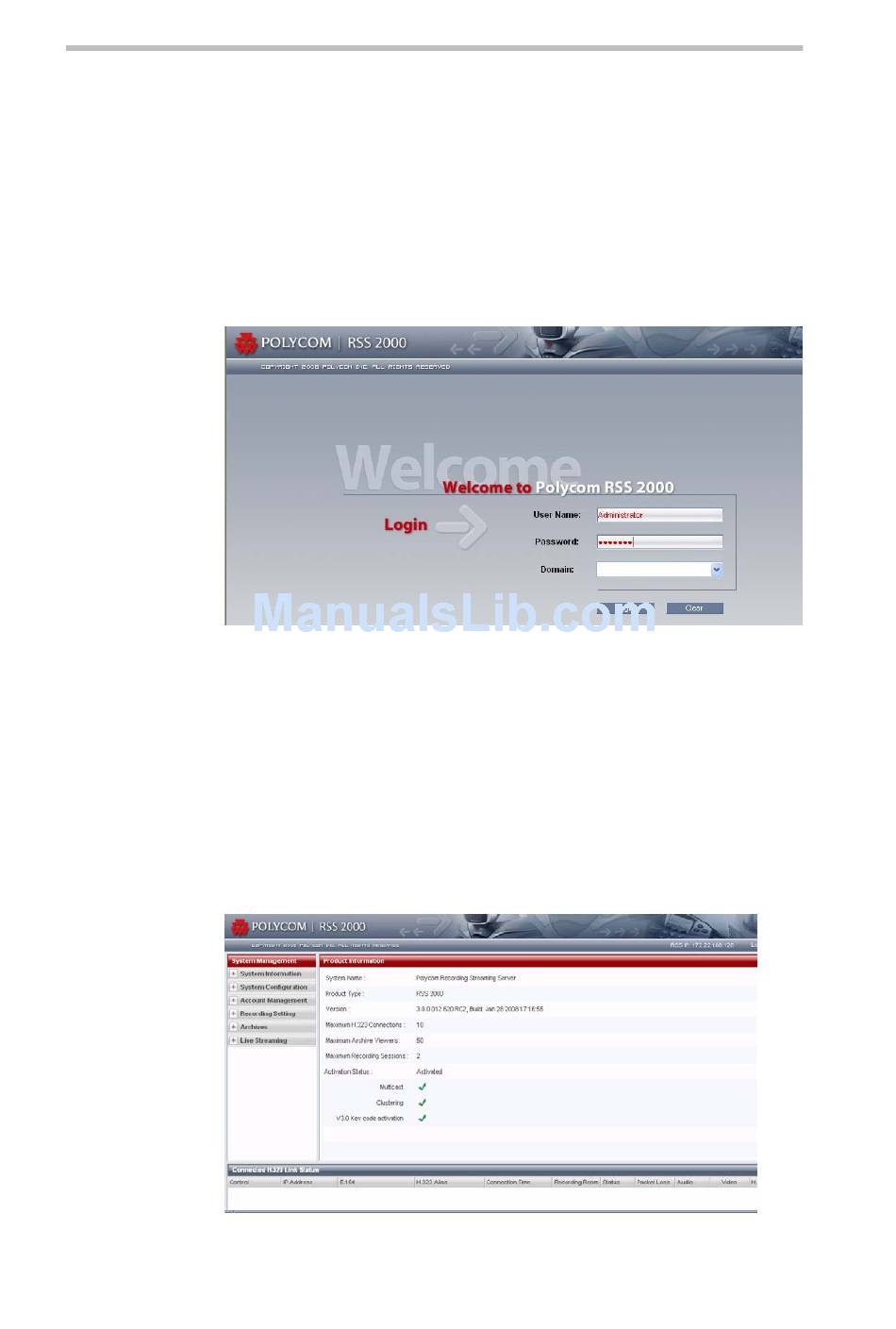

Figure 2-1
If the RSS 2000 you are logging into is integrated with an LDAP Active
Directory server, users can also enter an Active Directory domain user name
and password in the login screen. In this case, the "Domain" menu in Figure
2-1 will be enabled. Enter a correct user name and password, and select the
appropriate domain name from the "Domain" pull-down menu; click the
"Login" button or press enter to log in. Please refer to the Active directory
settings section for detailed information concerning Active Directory servers.

RSS 2000 Web UI Main screen

Figure 2-2
2-2
RSS 2000 login screen
RSS 2000 Web UI Main screen
