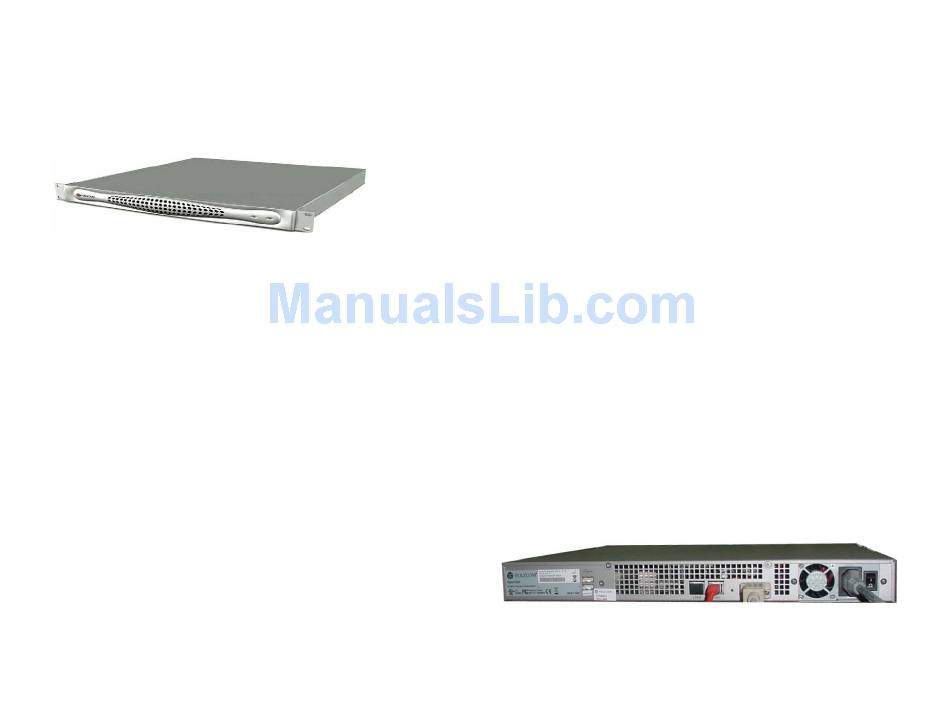

Polycom ™ RSS 2000 V1.0
Getting Started Guide
General Safety Precautions
Follow these rules to ensure general safety:
•
Keep the area around the Polycom RSS 2000 unit clean, free of
clutter and well ventilated.
•
Decide on a suitable location for the equipment rack that will hold
the RSS 2000 unit and is near a grounded power outlet.
•
Use a regulating uninterruptible power supply (UPS) to protect
the RSS 2000 unit from power surges and voltage spikes, and to
keep it operating in case of a power failure.
Hardware Specifications
•
Hardware:
Pentium 4, 2.8Mhz,1.5G RAM,250G Hardisk.
•
Form Factor:
1U 19" rack mount
•
Height:
1.73" (44 mm)
•
Width:
16.83" (430 mm)
•
Depth:
15.35" (390 mm)
DOC2153A
RSS 2000 Getting Started guide - V1 0.doc
•
Gross Weight:
22.4 lbs (10.2 kg)
•
Power Supply:
Thermal controlled 220W ATX AC power
supply w/PFC
•
AC Voltage:
100 - 240 VAC, 60-50 Hz, 5-3 Amps
•
Operating System: XP OS
Preparations
Obtain the following information from your network administrator:
•
RSS 2000 unit, Subnet Mask and Default Gateway IP addresses
•
Gatekeeper IP address, Prefix, and E.164 of the RSS 2000
Unpacking and Installing the RSS 2000
1. Place the RSS 2000 unit on a stable flat surface in the selected
location.
2. To connect to the power source, insert the power cable into the
Power connector on the rear panel of the MGC+ unit and insert
the Power cable into the power source socket.
3. Connect the LAN cable to LAN1 in the back of the system.
4. Turn on the power switch.
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RSS 2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Polycom RSS 2000

Summary of Contents for Polycom RSS 2000

  • Page 1 General Safety Precautions Follow these rules to ensure general safety: • Keep the area around the Polycom RSS 2000 unit clean, free of clutter and well ventilated. • Decide on a suitable location for the equipment rack that will hold the RSS 2000 unit and is near a grounded power outlet.
  • Page 2 RSS 2000 Getting Started guide - V1 0.doc 3. Open Internet Explorer and browse to: http://192.168.1.254 4. Login to the system. User name: Administrator Password: polycom 5. Go to System Configuration->IP Setting and modify the IP address. 6. Click the Save button. 7. Reset the system.
  • Page 3 RS232 console. 1. Connect to the RS232 port – and activate the console (9600, 8bits). 2. Login, using the default Login name: polycom (or any administrator password). When you are logged in to the console, you will see the system’s current IP address.
  • Page 4 RSS2000 Policies and Limitations Subject Description H.323 Alias The maximum length of the system H.323 alias name length is 16 characters The format for IVR message files is: WAV files, PCM message 16bits Console RS232 configuration: Baud rate 9600, Data bits 8, Service Parity None, Stop bits 1, Flow control OFF.
