1.－ Status of Solution valve for solution during printing
2.－ Status of 3-way valves during printing

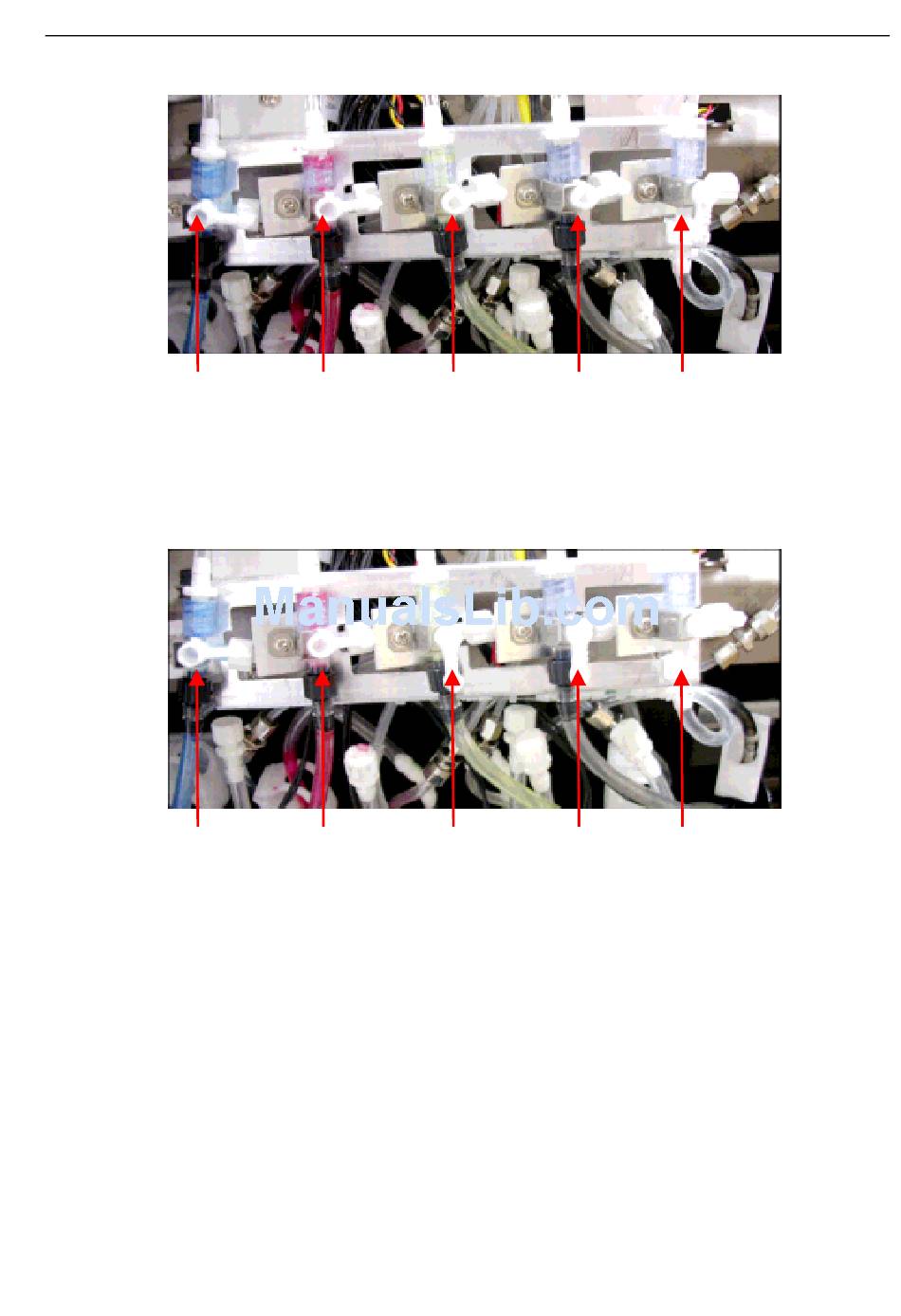

Figure 9-5 Status of Solution valve and 3-way valves during printing
2
1.－ Status of Solution valve for solution during cleaning
2.－ Status of 3-way valves not cleaning
3.－ Status of 3-way valves during cleaning
Figure 9-6 Status of Solution valve and 3-way valves during cleaning
When the printer will go on for printing, remember to turn the handles to horizontal position first and press
"Ink" button for positive pressure cleaning until ink drops from the nozzles.
Note:
When the 3-way valve is open to ink, never press the "Solution" button on the cleaning
operation penal, or it will start the solution pump and pushes solution to the valve. The
solution tube may burst from the valve.
