IX.7 Flush Print head with solution
3
2
If the printer is idle for a long time, it is better to clean the Print heads with flush solution.
The way is: Turn the 3-channel valve to flush solution position (turn the handle downward) and move the
Print head carriage to clean position via control panel. Press "Solution" button on the cleaning operation
penal. The solution pump starts and pushes cleaning solution to Print heads therefore cleans the Print
heads
Handle position for printing
Ink
SignJet JS310 Series User's Manuals
1.－ Flush solution valve
2.－ Ink tube
3.－ Ink-solution 3-channel valve
4.－ Flush solution tube

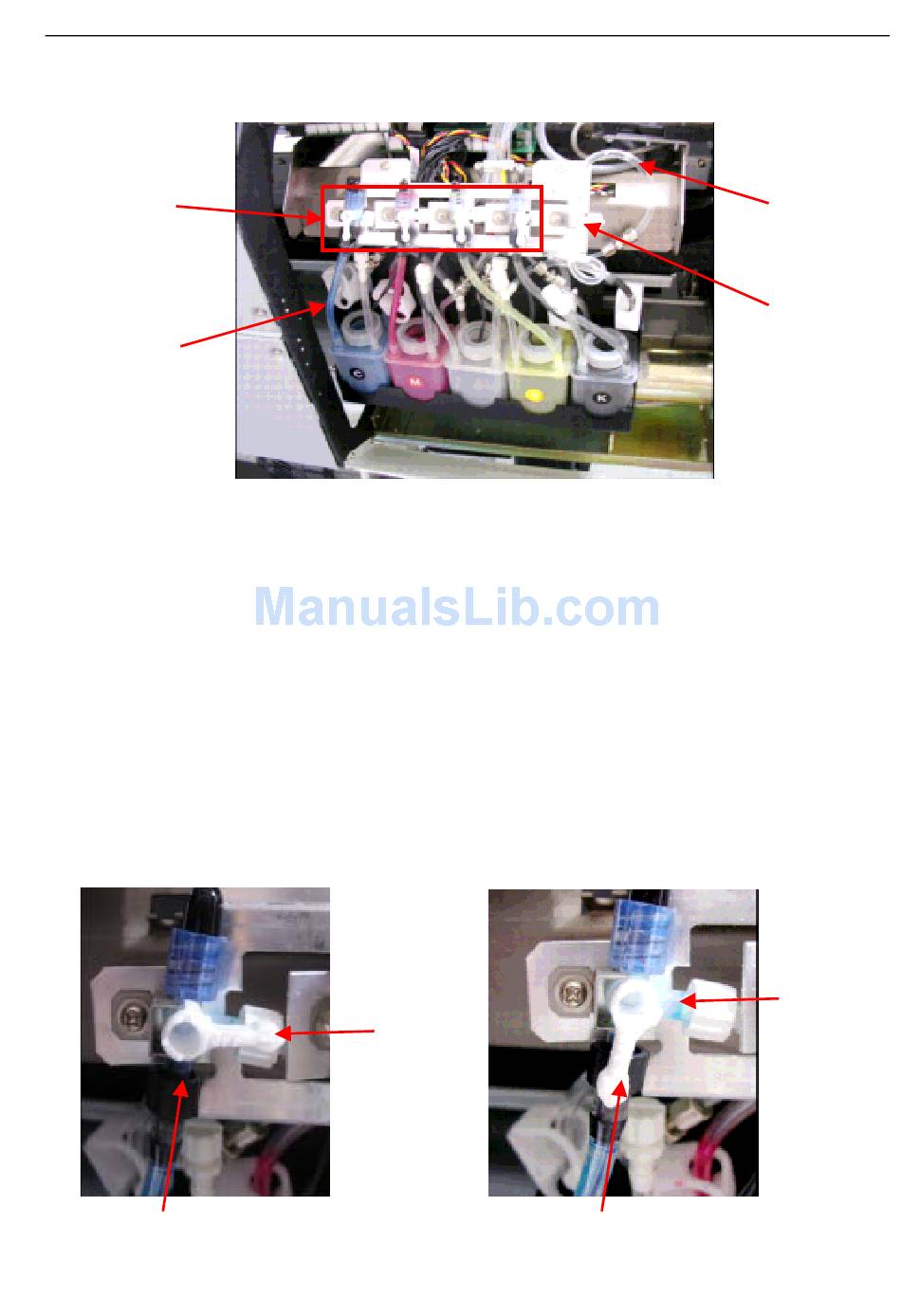

Figure 9-3 3-channel valves
Flush
solution
Figure 9-4 Handle position for printing and cleaning with solution
Handle position for solution cleaning
Ink
