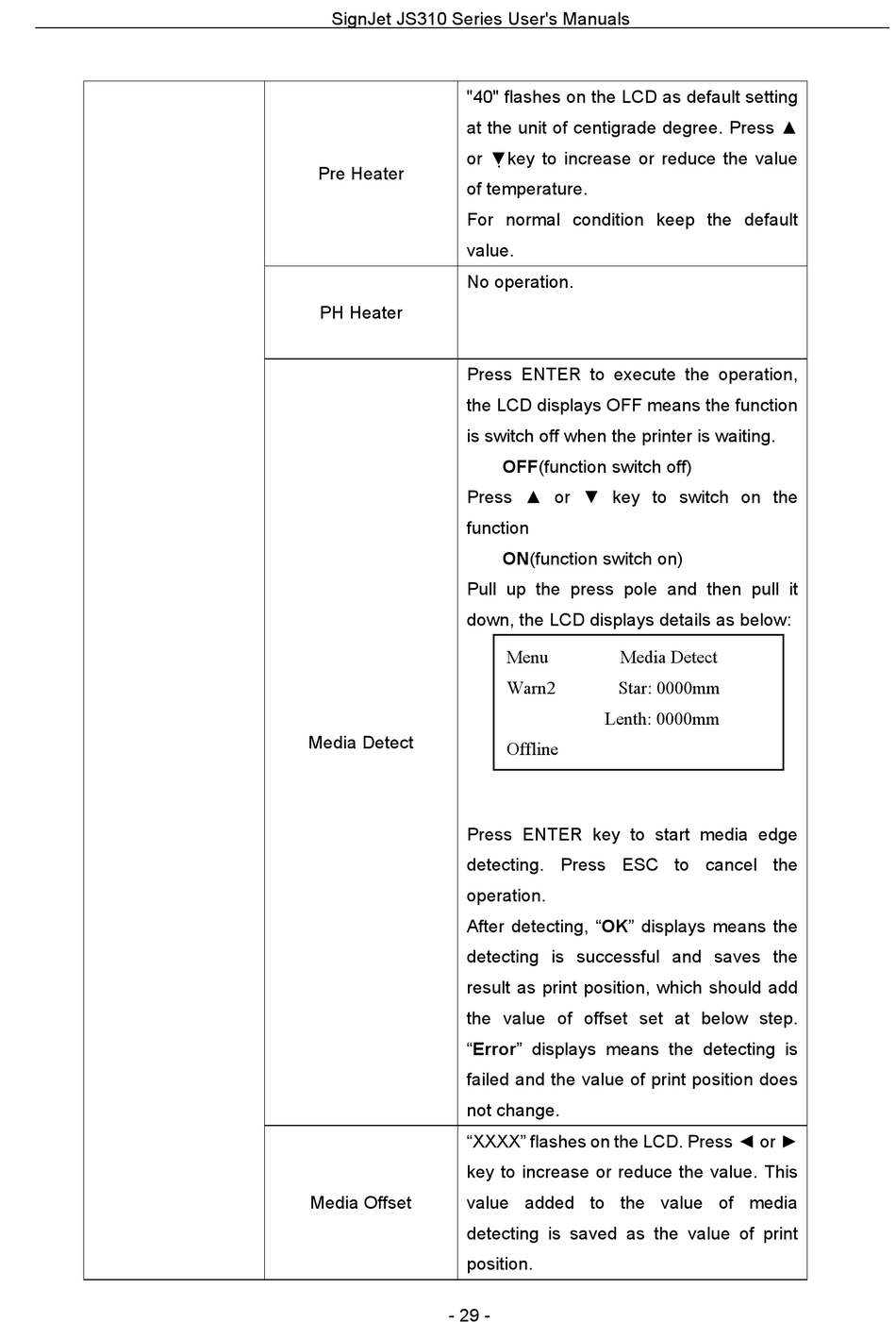

SignJet JS310 Series User's Manuals
"40" flashes on the LCD as default setting
at the unit of centigrade degree. Press ▲
or ▼ k ey to increase or reduce the value
Pre Heater
of temperature.
For normal condition keep the default
value.
No operation.
PH Heater
Press ENTER to execute the operation,
the LCD displays OFF means the function
is switch off when the printer is waiting.
Press ▲ or ▼ key to switch on the
function
Pull up the press pole and then pull it
down, the LCD displays details as below:
Media Detect
Press ENTER key to start media edge
detecting. Press ESC to cancel the
operation.
After detecting, "OK" displays means the
detecting is successful and saves the
result as print position, which should add
the value of offset set at below step.
"Error" displays means the detecting is
failed and the value of print position does
not change.
"XXXX" flashes on the LCD. Press ◄ or ►
key to increase or reduce the value. This
Media Offset value added to the value of media
detecting is saved as the value of print
position.
- 29 -
OFF(function switch off)
ON(function switch on)
Menu Media Detect
Warn2 Star: 0000mm
Lenth: 0000mm
Offline
