UPGRADING 3610 USB BRIDGE FIRMWARE

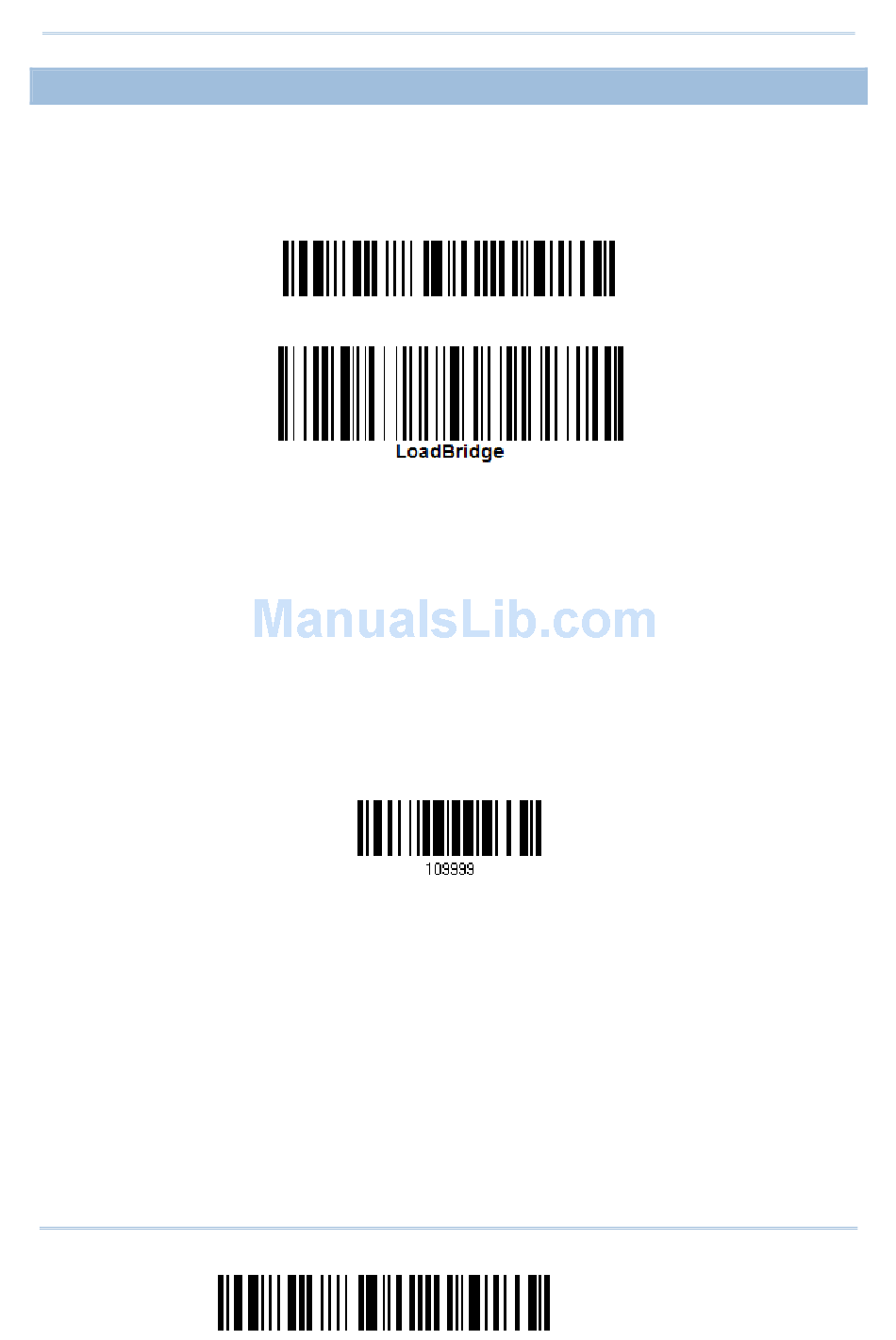

1) Read the following labels in sequence for 3610 to enter the download mode. The
Communication LED on 3610 will be flashing red to indicate it is ready for
downloading.
2) Run the download utility "ProgLoad.exe" on your computer.
1. For the communication settings, select "RS-232" and the correct COM port for USB
Virtual COM interface, and ignore the baud rate setting.
2. For the file option, click [Browse] to select the target file for firmware update
(3610*.shx).
3. Click [OK].
3) The 3610 will automatically restart itself when upgrading firmware is completed
successfully.
4) Read the "Update" label for the scanner to resume its operation (exit the
configuration mode).
162
User Guide
Enter Setup
3610 Download USB Bridge Firmware
Update
Enter Setup
