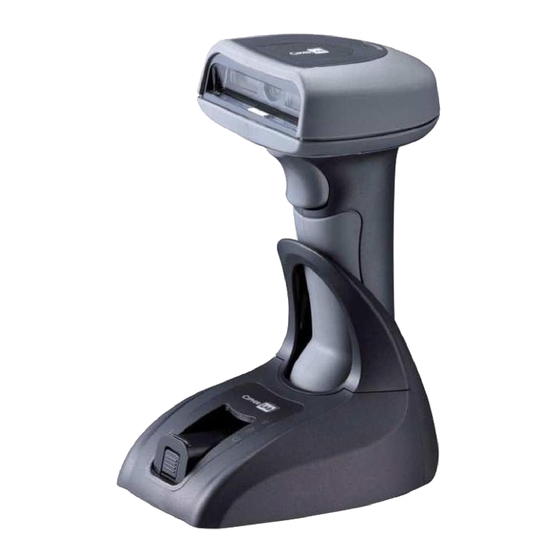

CIPHERLAB 1166 Bluetooth Scanner
THESE SIX PAGES ARE IMPORTANT.
Keep handy, perhaps laminated.
The notes will save trawling through the enclosed disc.
Encourage all personnel to spend a little time to become familiar with the scanner. It is simple to
operate with practice.
PLEASE READ THESE INSTRUCTIONS PRIOR TO MAKING A SUPPORT CALL.
Most issues will be resolved and save you time and cost of a phone call.
Please do not hesitate to call if issue still unresolved.
1. General Description of scanner - see page 2.
Please note: batteries are probably sufficiently charged to immediately start operations.
2. Normal Mode (Live Transmission) – see page 2.
Suitable for circulation and general scanning. Can also be used for small stocktake with Automatic
Memory and (semi) automatic upload (see item 3)
3. Automatic Memory and (semi) automatic upload - see page 2.
This mode is suitable for smaller stocktakes. Once the barcodes are transferred from the scanner to
the computer the barcodes are no longer in the scanner memory.
4. Alternative operation for Stocktake – see page 3 and 4.
This mode is suitable for larger stocktakes but it is still recommended doing the stocktake in
manageable batches. Barcodes are stored in the memory until deliberately transferred and deliberately
cleared. This means the computer can be used for other purposes while stocktake is in process. The
computer must be returned to the Stocktake module (or perhaps "Word") to transfer the stored
barcodes. Take time to follow these instructions carefully to ensure the process is correct.
Pay particular attention to scanning "Enter Setup", "Update", "wait for prolonged beep".
5. Barcode Transmission Speed - see page 4.
This has been set at ½ second (500ms). If it is uploading barcodes too fast then set to a slower speed.
6. Other Points to Note – see page 4.
7. Buzzer Setting (Volume and Pitch) – see page 4.
8. Auto Power Off Mode (Non Trigger Use) – see page 5.
For continuous type scanning after becoming familiar with the scanning distance.
9. Reinstate to Normal Mode and Automatic Memory (as per 2 and 3 above) – see Page 6.
Not to be used in returning from User Choice Memory (4 above).
Page 1 of 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CipherLab 1166
Summary of Contents for CipherLab 1166
- Page 1 CIPHERLAB 1166 Bluetooth Scanner THESE SIX PAGES ARE IMPORTANT. Keep handy, perhaps laminated. The notes will save trawling through the enclosed disc. Encourage all personnel to spend a little time to become familiar with the scanner. It is simple to operate with practice.
- Page 2 General 1. Connection / Charging Insert and lock (slide latch) one battery in scanner and other battery in cradle. Connect cradle to computer and to power; charging will take about 4 hours. The battery in the cradle is for charging purposes only – it does not power the cradle.
- Page 3 ALTERNATIVE OPERATION FOR STOCKTAKE (Use when library is open during stocktake) This is a deliberately chosen memory. It can store up to 8000 barcodes but smaller batches are better). Barcodes are stored in the memory until they are deliberately uploaded and then deliberately cleared. Scan following barcodes in order (using trigger) Change from “Normal”...
- Page 4 Barcode Transmission Speed If data transfers too fast for the software to accept, try the following: First – Scan Enter Setup Second – Select one of the following speed options (Note: 500ms recommended, 1 sec or slower for Thin Client). Scan one barcode for your required speed option.
- Page 5 Continuous mode (non trigger use) with Auto power off mode NOTE: 1266 Laser Scanners only. Never set a 1266 Laser Scanner to “Continuous Mode”. Use “Auto Power Off Mode” as above with a maximum Time-out period of 30 seconds. When you are confident with the scanning distance, you may wish to change to a continuous type mode. Fully “Continuous Mode”...
- Page 6 Reprogram to normal mode (Live transmission, automatic memory, as first supplied) This page is not part of a regular schedule. This mode is only used if the settings are lost or deleted, perhaps through computer malfunction or incorrect programming. Do not use to change user memory modes. Scan following barcodes in order.
