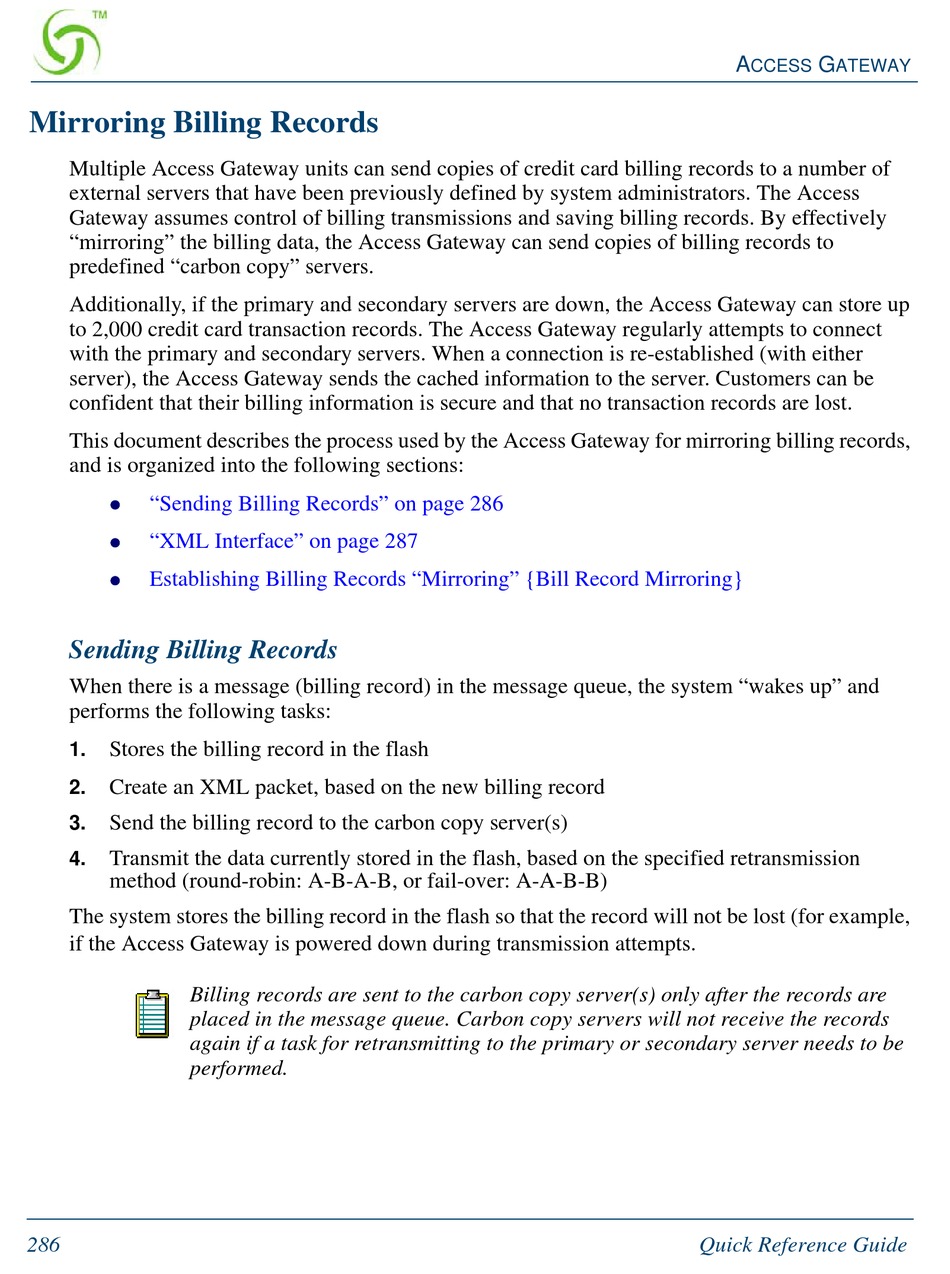

Mirroring Billing Records

Multiple Access Gateway units can send copies of credit card billing records to a number of
external servers that have been previously defined by system administrators. The Access
Gateway assumes control of billing transmissions and saving billing records. By effectively
"mirroring" the billing data, the Access Gateway can send copies of billing records to
predefined "carbon copy" servers.
Additionally, if the primary and secondary servers are down, the Access Gateway can store up
to 2,000 credit card transaction records. The Access Gateway regularly attempts to connect
with the primary and secondary servers. When a connection is re-established (with either
server), the Access Gateway sends the cached information to the server. Customers can be
confident that their billing information is secure and that no transaction records are lost.
This document describes the process used by the Access Gateway for mirroring billing records,
and is organized into the following sections:
"Sending Billing Records" on page 286

"XML Interface" on page 287

Establishing Billing Records "Mirroring" {Bill Record Mirroring}


Sending Billing Records

When there is a message (billing record) in the message queue, the system "wakes up" and
performs the following tasks:
Stores the billing record in the flash
1.
Create an XML packet, based on the new billing record
2.
Send the billing record to the carbon copy server(s)
3.
Transmit the data currently stored in the flash, based on the specified retransmission
4.
method (round-robin: A-B-A-B, or fail-over: A-A-B-B)
The system stores the billing record in the flash so that the record will not be lost (for example,
if the Access Gateway is powered down during transmission attempts.
Billing records are sent to the carbon copy server(s) only after the records are
placed in the message queue. Carbon copy servers will not receive the records
again if a task for retransmitting to the primary or secondary server needs to be
performed.
