Displaying the IP Statistics {IP}

You can display the IP (Internet Protocol) statistics which are presented as a detailed listing of
all IP elements and their current status. With IP transmissions, data is broken up into packets
which are then sent over the network. By using IP addressing, Internet Protocol ensures that
the data reaches its destination, even though different packets may "pass through" different
networks to get to the same location.
To view the IP Statistics, go to the Web Management Interface, click on , then
Network Info
click on
IP.

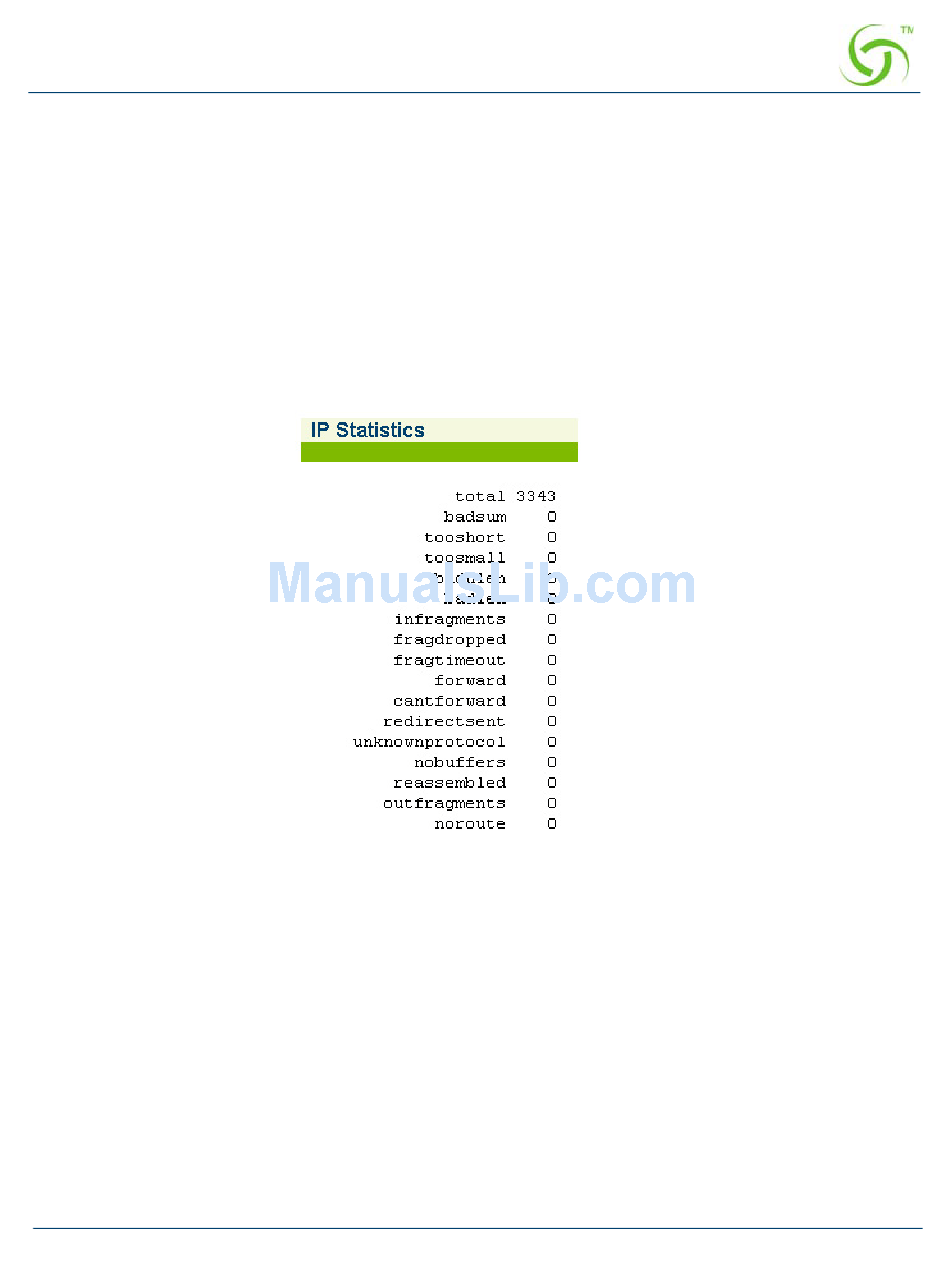

The IP Statistics screen appears:

Viewing IPSec Tunnel Status {IPSec}

To view the current IPSec Tunnel Status, go to the Web Management Interface, click on
, then click on
Network Info IPSec.

Displaying the Routing Tables {Routing}

You can display the current Routing Tables, including any dynamically generated routes,
unreachable routes, or wildcard routes.
System Administration 145
