TURBO RAVEN.

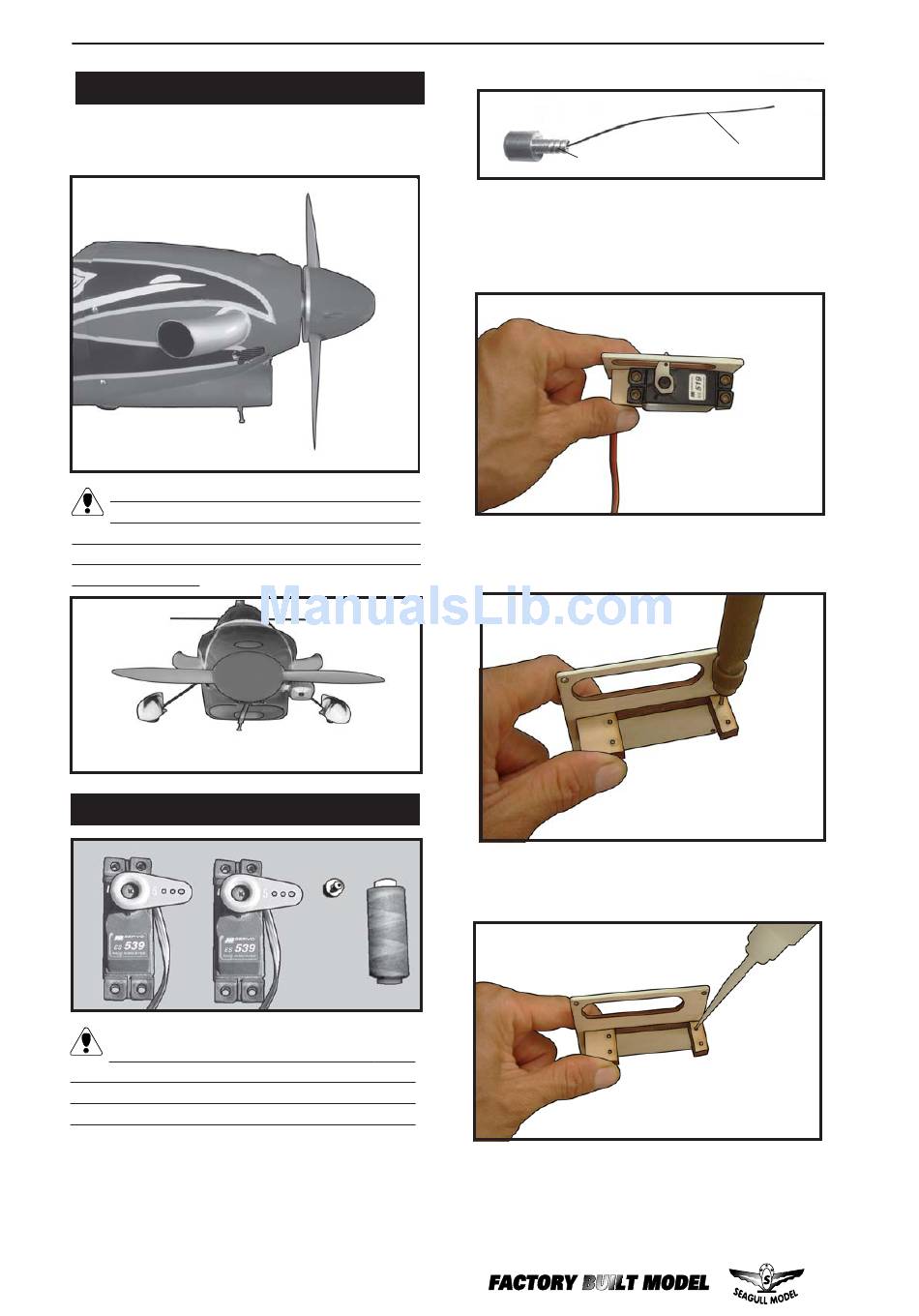

SPINNER INSTALLATION.

Install the spinner backplate, propeller and
spinner cone.
The propeller should not touch any part
of the spinner cone. If it does, use a
sharp modeling knife and carefully trim away
the spinner cone where the propeller comes
in contact with it.
INSTALLING THE AILERON.
Servos.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of
the mount allow the servo lead to pass through.
1) Using a small weight (
) and string, feed the string through
works well
the wing as indicated.
16
Small weight.
Thread.
Weighted fuel pick-up
Instruction Manual
Small weight.
2) Place the servo between the mounting
blocks and space it from the hatch. Use a pencil
to mark the mounting hole locations on the
blocks.
3) Use drill bit in a pin vise to drill the mouting
holes in the blocks.
4) Apply 2-3 drops of thin C/A to each of the
mounting holes. Allow the C/A to cure without
using accelerator.
5) Use dental floss to secure the connection
so they cannot become unplugged.
String.
