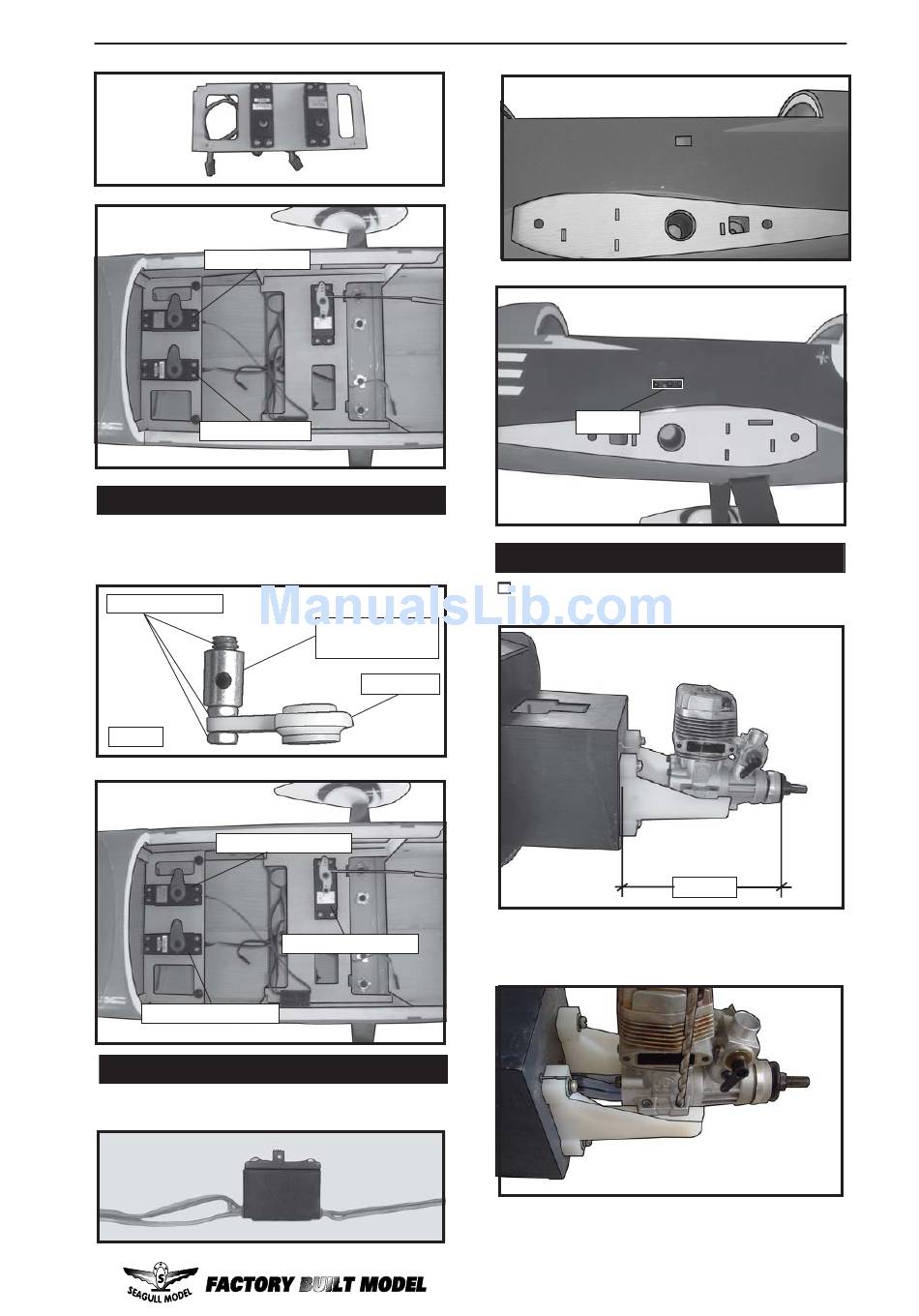

Mounting The Engine; Installing The Switch - Seagull Models Turbo Raven Assembly Manual

Rudder servo .
Elevator servo .
THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the servo
arm as same as picture below:
Loctite secure.
1 PCS.
Rudder servo arm.
Elevator servo arm.

INSTALLING THE SWITCH.

Install the switch into the precut hole in the
side of fuselage.
www.seagullmodels.com
Adjustable Servo
connector.
Servo arm.
Throttle servo arm.
Switch.

MOUNTING THE ENGINE.

1) Position the engine with the drive washer
(115mm) forward of the firewall as shown.
2) Use a pin drill and 2mm drill bit to drill a
small indentation in the mount for the engine
mounting screw.
3) Use a drill to drill the four holes in the engine
mount rails.
115mm.
